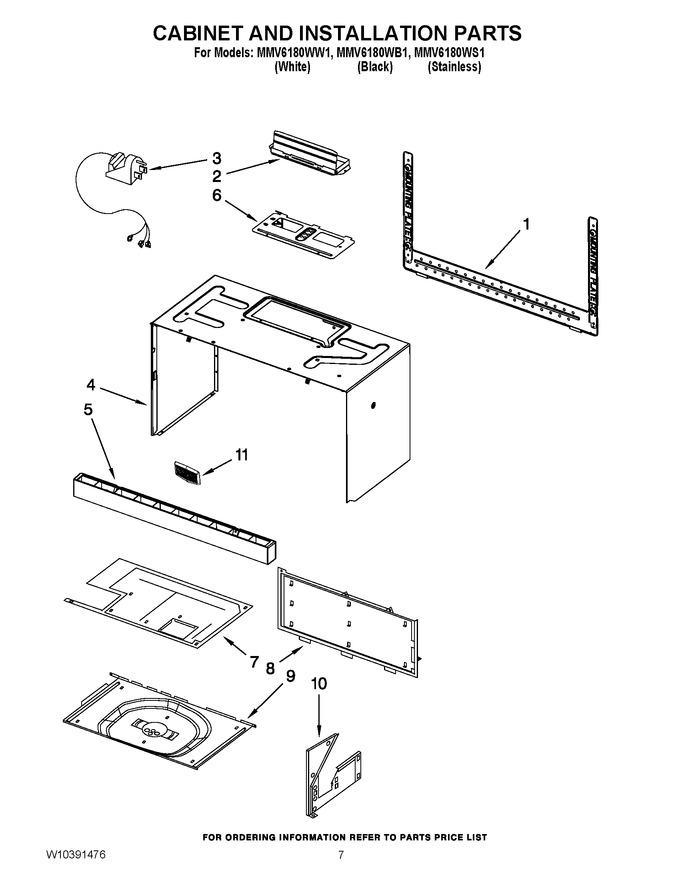

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting   (Replaces: W10245177)			Immediately	$ 21.16
2	W10843943		Damper Assembly   (Replaces: 8206442)			Immediately	$ 65.74
3	W10247765		Cord-power		Appelez-nous	-
4	WPW10244765		Case, Outer (white)   (Replaces: W10244765)				$ 198.23
4	WPW10245176		Case, Outer (black)   (Replaces: W10245176)				$ 198.23
5	W10259230		Grille, Vent (white)		Appelez-nous	-
5	W10527310		Grille, Vent (black)   (Replaces: W10259235)				$ 84.34
5	W10259232		Grille, Vent (stainless)			Immediately	$ 144.91
6	W10210832		Plate, Damper				$ 6.68
7	W10248268		Assy, Top Plate		Appelez-nous	-
8	W10248267		Assy, Back Plate		Appelez-nous	-
9	W10249318		Assy, Bottom Plate		Appelez-nous	-
10	W10248279		Assy, Right Plate		Appelez-nous	-
11	W10286845		Nameplate				$ 35.23
NI	W10190018		Template, Upper			Immediately	$ 6.47
NI	WP8169704		Screw, Top Mountng   (Replaces: 8169704)			Immediately	$ 10.07
NI	W10283312		Main Harness		Appelez-nous	-
NI	8205948		Installation, Hardware				$ 23.06
NI	W10107760		Grnd Wire, Filter		Appelez-nous	-
NI	W10245226		Hdlmp/tt Wire Assy		Appelez-nous	-
NI	W10539840		Ground Wire Assy   (Replaces: 8205696)				$ 21.50
