SELECT A DIAGRAM

01 - Microwave Door Parts

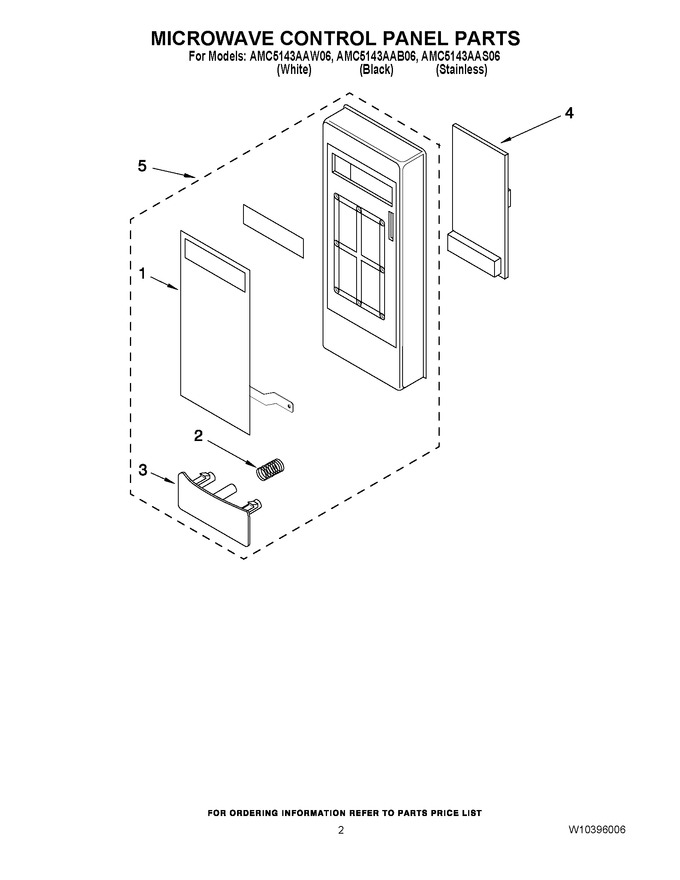

02 - Microwave Control Panel Parts


03 - Microwave Oven Cavity Parts


04 - Microwave Latch Board Parts


05 - Microwave Interior Parts


06 - Base Plate And Convection Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10267103		Sw., Membrane (black)		Appelez-nous	-
1	W10267104		Sw., Membrane (white)		Appelez-nous	-
1	W10267106		Sw., Membrane (stainless)		Appelez-nous	-
2	DE61-70026A		Spring-button			Immediately	$ 0.85
3	DE67-00087D		Button, Push (black)		Appelez-nous	-
3	DE67-00087C		Button, Push (stainless)		Appelez-nous	-
3	DE67-00087F		Button, Push (white)		Appelez-nous	-
4	W10267102		Pcb		Appelez-nous	-
5	DE94-00444F		Assy, Control (black/stainless)		Appelez-nous	-
5	DE94-00444E		Assy, Control (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
