SELECT A DIAGRAM

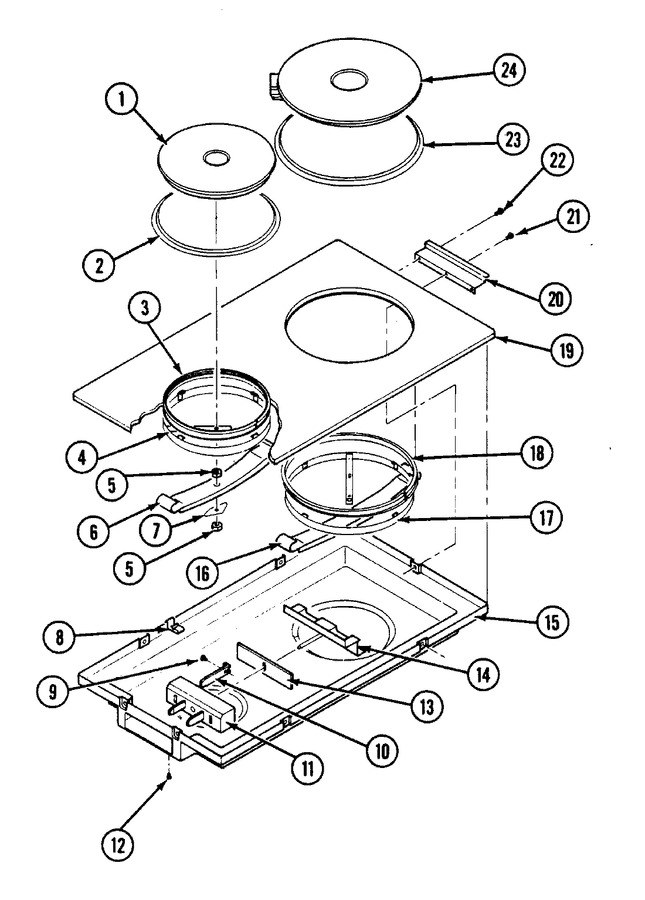

01 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y04100362 | Element W/ring (small) | 11 |
|
- | ||||
| 3 | 04100348 | Gasket (small) | 11 |
|
- | ||||
| 4 | 04000006 | Collar, Small (145mm) | 11 |
|
- | ||||
| 5 | 04100354 | Nut, Hex----na | 11 |
|
- | ||||
| 6 | 703408 | Bracket, Small | 11 |
|
- | ||||
| 7 | 703416 | Bracket (sm) | 11 |
|
- | ||||
| 8 | Y708910 | Clip | 11 |
|
- | ||||
| 9 | WP488234 | Screw (Replaces: 708861) | 11 |
|
$ 6.07 | ||||
| 10 | Y708572 | Spade, Contact | 11 |
|
Immediately | $ 11.34 | |||
| 11 | WPY708730 | Block, Terminal (Replaces: Y708730) | 11 |
|
Immediately | $ 87.44 | |||
| 12 | 703417 | Nut, Hex | 11 |
|
- | ||||
| 13 | 708834 | Insulator, Contact Spade | 11 |
|
$ 13.49 | ||||
| 14 | Y700648 | Bracket, Retaining Assy. | 11 |
|
- | ||||
| 15 | 04100401 | Pan, Cartridge | 11 |
|
- | ||||
| 16 | 04100402 | Bracket, Large | 11 |
|
- | ||||
| 17 | 04000007 | Collar, 180mm (large) | 11 |
|
- | ||||
| 18 | 04100349 | Seal, Large | 11 |
|
- | ||||
| 19 | 04100835 | Glass Assembly | 11 |
|
- | ||||
| 20 | 703479 | Handle | 11 |
|
- | ||||
| 21 | WP12990527 | Screw (Replaces: Y708955) | 11 |
|
Immediately | $ 7.15 | |||
| 22 | WP74004005 | Screw (Replaces: Y708359) | 11 |
|
$ 6.95 | ||||
| 24 | Y700645 | Wire | 11 |
|
- | ||||
| 24 | Y04100403 | Element W/ring (large) | 11 |
|
- | ||||
| 24 | Y703410 | Wire, Red | 11 |
|
- | ||||
| 24 | Y04100080 | Sensor, Glass Protector | 11 |
|
- |
