01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)

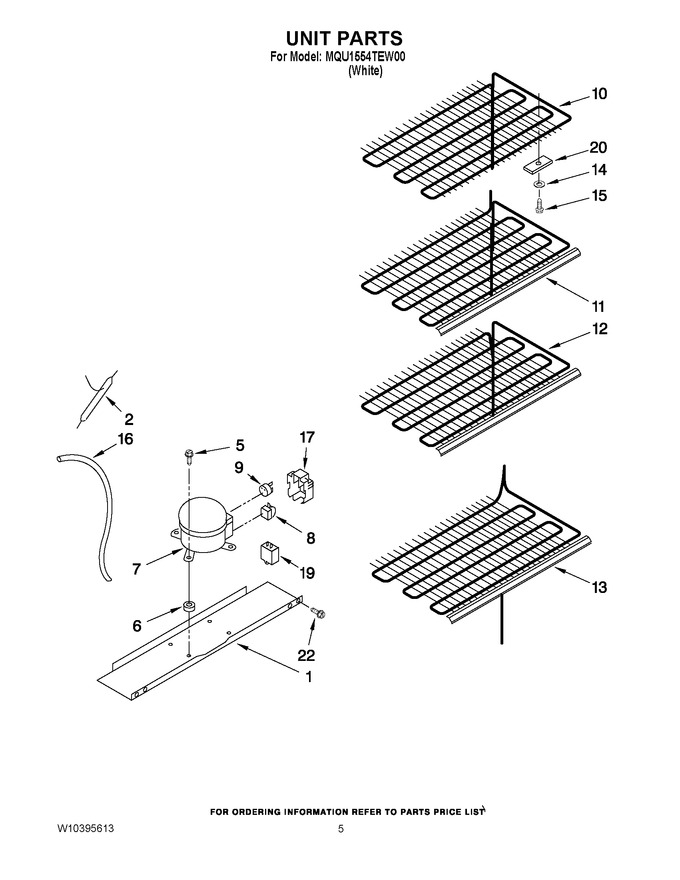

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10260544		Pan, Compressor Mounting		Appelez-nous	-
2	4001		Drier   (Replaces: 4357299)			Immediately	$ 9.64
5	8210220		Screw, Compressor Mounting		Appelez-nous	-
6	4356335		Grommet		Appelez-nous	-
7	W10309989		Compressor (includes Items 6, 8, 9, & 17)   (Replaces: 4-32812-262)			Immediately	$ 591.26
8	4356738		Relay				$ 53.17
9	WP2214067		Overload   (Replaces: 4390624)				$ 118.49
10	8210398		Evaporator Top		Appelez-nous	-
11	8210304		Evaporator Shelf		Appelez-nous	-
12	8210305		Evaporator Shelf		Appelez-nous	-
13	4-82197-002		Evaporator Bott   (Replaces: 8210306)		Appelez-nous	-
14	4357057		Washer		Appelez-nous	-
15	WP3-24004-109		Screw, Evaporator Mounting   (Replaces: 4357223)				$ 7.25
16	4390881		Heat Exchanger		Appelez-nous	-
17	4356777		Cover		Appelez-nous	-
19	8210273		Capacitor				$ 55.86
20	4356854		Clamp		Appelez-nous	-
22	WP3-24838-048		Screw   (Replaces: 4357277)				$ 7.00
NI	N/P		Refrigerant Charge (6.9 Oz. (r-134a))		Appelez-nous	-
