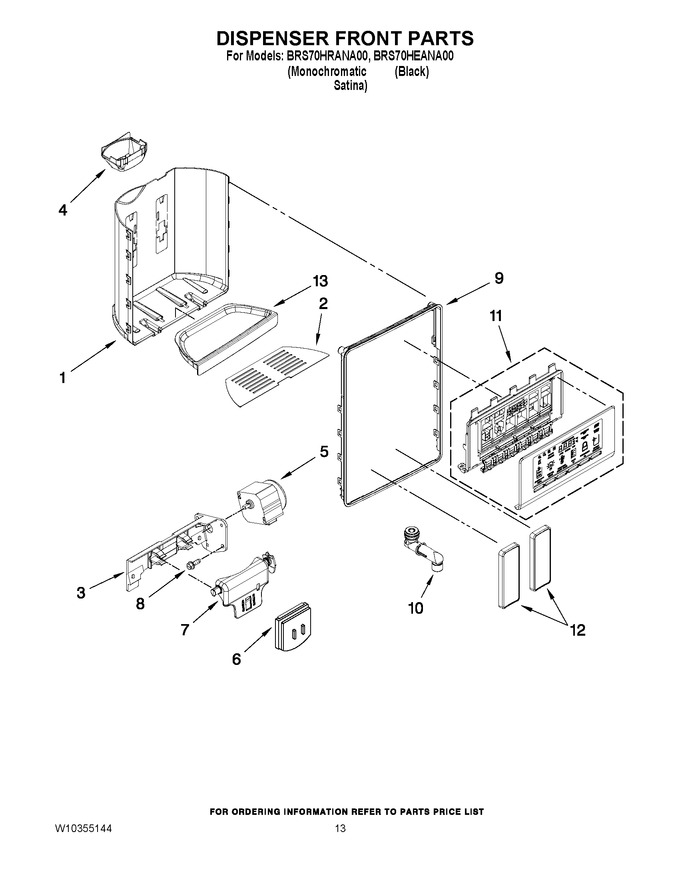

08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10276197		Grate, Drip Tray   (Replaces: W10276197)				$ 75.21
3	W10174827		Bracket, Ice Door				$ 76.42
4	W10499850		Chute, Door   (Replaces: W10174808)				$ 104.67
5	WPW10205978		Motor, Ice Door   (Replaces: W10205978)				$ 104.12
6	W10346235		Door, Ice   (Replaces: W10174811)				$ 170.32
7	W10499850		Support, Ice Door   (Replaces: W10174809)				$ 104.67
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	W10254306		Trim Ring		Appelez-nous	-
10	WP2305235		Spigot   (Replaces: 2305235)			Immediately	$ 147.07
11	WPW10276277		Electronic Control Assy (silver Mirror)   (Replaces: W10276277)				$ 283.20
11	WPW10245298		Electronic Control Assy (black)   (Replaces: W10245298)				$ 370.95
12	WPW10370594		Pad, Ice & Water (midnight Grey)   (Replaces: W10290362)				$ 310.61
12	WPW10370592		Pad, Ice & Water (black)   (Replaces: W10238111)				$ 322.90
13	WPW10276196		Tray, Housing (midnight Grey)   (Replaces: W10276196)				$ 69.32
13	W10276194		Tray, Housing (black)				$ 69.36
