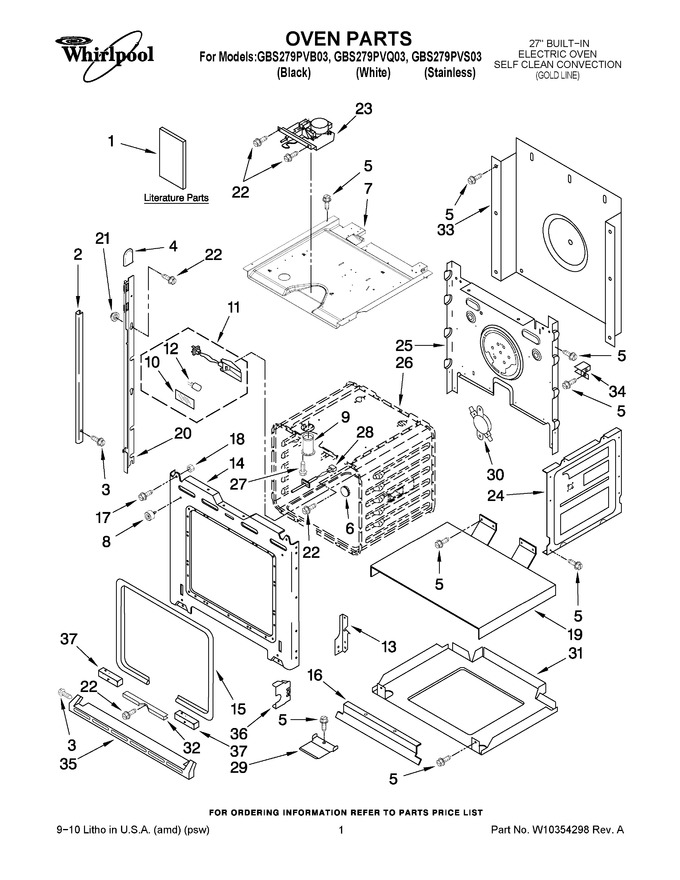

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10192049		Installation Instructions		Appelez-nous	-
1	W10192042		Owners Manual		Appelez-nous	-
1	W10185218		Tech Sheet (english)		Appelez-nous	-
1	W10205112		Tech Sheet (french)		Appelez-nous	-
1	8304571		Installation/ Undercounter		Appelez-nous	-
1	9762761		Cook Guide (english)		Appelez-nous	-
1	W10065852		Cook Guide (french)		Appelez-nous	-
2	W10145004		Trim, Side Right (stainless)				$ 54.65
2	W10145005		Trim, Side Left (stainless)				$ 63.09
2	W10207429		Trim, Side Left (black)		Appelez-nous	-
2	W10207432		Trim, Side Left (white)		Appelez-nous	-
2	W10207430		Trim, Side Right (black)		Appelez-nous	-
2	W10207431		Trim, Side Right (white)		Appelez-nous	-
3	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
4	4451605		Cap, Spacer				$ 38.55
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
6	4448982		Plug, Button		Appelez-nous	-
7	4455864		Top, Chassis				$ 22.85
8	W10105790		Bumper, Door				$ 6.35
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 104.97
10	W10169756		Lens, Light				$ 36.16
11	WPW10307114		Assembly, Oven Light   (Replaces: W10307114)			Immediately	$ 99.44
12	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 42.64
13	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 103.82
13	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 107.47
14	W10130370		Frame, Front				$ 79.39
15	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 159.09
16	9760676		Deflector, Vent		Appelez-nous	-
17	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
18	WP4450118		Nut   (Replaces: 4450118)				$ 7.16
19	4451477		Support, Insulation		Appelez-nous	-
20	8303116		Rail, Side (left)		Appelez-nous	-
20	8303115		Rail, Side (right)				$ 164.47
21	WP4448444		Grommet, Mounting Rail   (Replaces: 4448444)				$ 6.73
22	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
23	WPW10195934		Latch, Motorized   (Replaces: W10195934)			Immediately	$ 259.79
24	W10782197		Side, Chassis   (Replaces: 4455641)				$ 129.16
25	W10161109		Back, Chassis		Appelez-nous	-
26	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
27	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
28	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 86.25
29	4455807		Deflector, Vent Box (black)		Appelez-nous	-
29	W10145009		Deflector, Vent Box (white & Stainless)   (Replaces: 4452489)				$ 69.95
30	WP9759242		Thermostat   (Replaces: 9759242)			Immediately	$ 77.01
31	4455529		Base, Chassis		Appelez-nous	-
32	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 7.97
33	WP4451747		Cover, Back   (Replaces: 4451747)				$ 128.63
34	4449845		Support, Bracket		Appelez-nous	-
35	W10207687		Vent, Bottom Trim (white)				$ 66.47
35	W10151130		Vent, Bottom Trim (stainless)		Appelez-nous	-
35	W10207684		Vent, Bottom Trim (black)				$ 65.77
36	4452152		Bracket, Mounting- Bottom Vent				$ 30.15
37	4452490		Spacer				$ 34.83
NI	4449315		Insulation, Wrap				$ 64.81
NI	4450364		Insulation, Back		Appelez-nous	-
