01 - Cooktop Parts

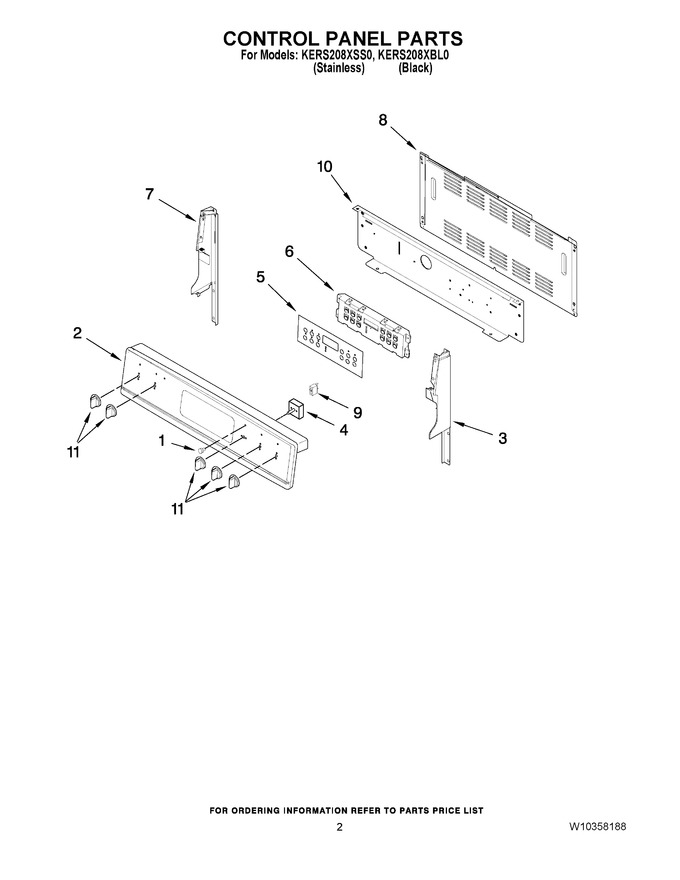

02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10350097 | Lens |
|
$ 6.56 | |||||
| 2 | W10355067 | Panel & Membrane Switch (black) |
|
- | |||||
| 2 | W10352234 | Panel & Membrane Switch (stainless) |
|
- | |||||
| 3 | W10340735 | End Cap, Right (black) |
|
- | |||||
| 4 | W10350101 | Switch, Infinte (radian Dual Rf/lf) |
|
- | |||||
| 4 | W10350098 | Switch, Infinte (lr/rr) |
|
$ 140.61 | |||||
| 4 | W10349884 | Switch, Infinte (warmer) |
|
$ 106.40 | |||||
| 5 | W10352253 | Overlay, Control |
|
$ 30.70 | |||||
| 6 | W10352251 | Control |
|
$ 377.98 | |||||
| 7 | W10340740 | End Cap, Left (black) |
|
- | |||||
| 8 | W10315160 | Cover, Rear Wire |
|
$ 56.47 | |||||
| 9 | W10349885 | Light/lamp, Indicator, 125v |
|
$ 32.16 | |||||
| 10 | W10350103 | Shield, Heat (black) |
|
- | |||||
| 11 | WPW10350602 | Knob (stainless) (Replaces: W10350602) |
|
$ 53.70 | |||||
| 11 | W10350095 | Knob (black) |
|
$ 16.34 |
