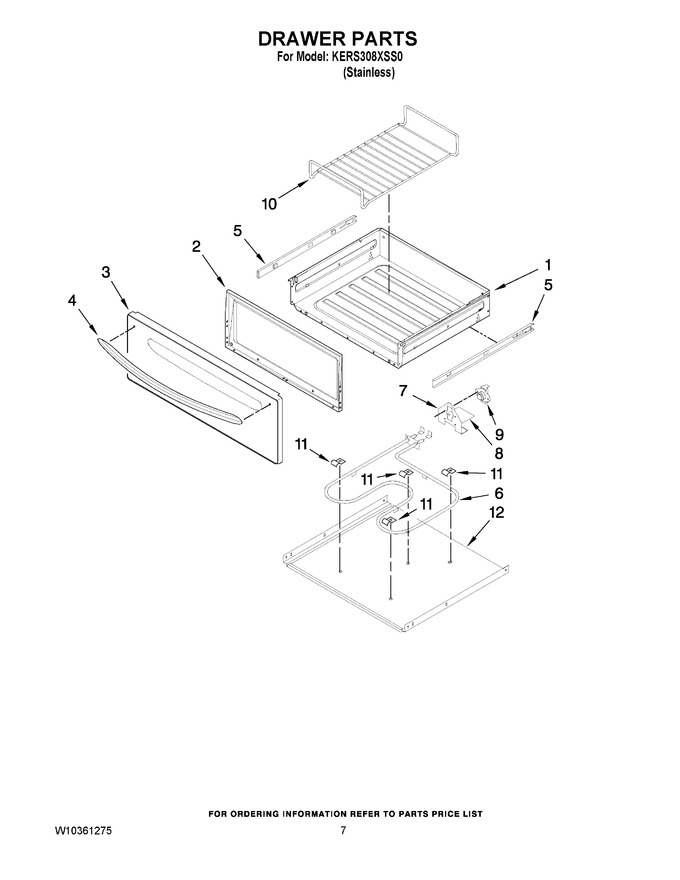

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10354973		Drawer, Utility				$ 164.79
2	W10350476		Liner, Drawer Front Frame		Appelez-nous	-
3	W10350604		Panel, Drawer (stainless)				$ 101.22
4	W10350605		Handle, Drawer (stainless)				$ 125.83
5	W10347664		Glide, Drawer (lh)				$ 46.56
5	W10347665		Glide, Drawer (rh)				$ 42.06
6	W10354990		Element, Bake Warming Drawer				$ 196.43
7	W10355009		Bracket, Element		Appelez-nous	-
8	W10355011		Shield Terminal, Warming Drawer		Appelez-nous	-
9	W10355012		Thermo Disc				$ 30.71
10	W10355017		Rack, Warming Drawer		Appelez-nous	-
11	W10355014		Clip, Hold Down		Appelez-nous	-
12	W10355039		Base, Warming Drawer		Appelez-nous	-
