SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts

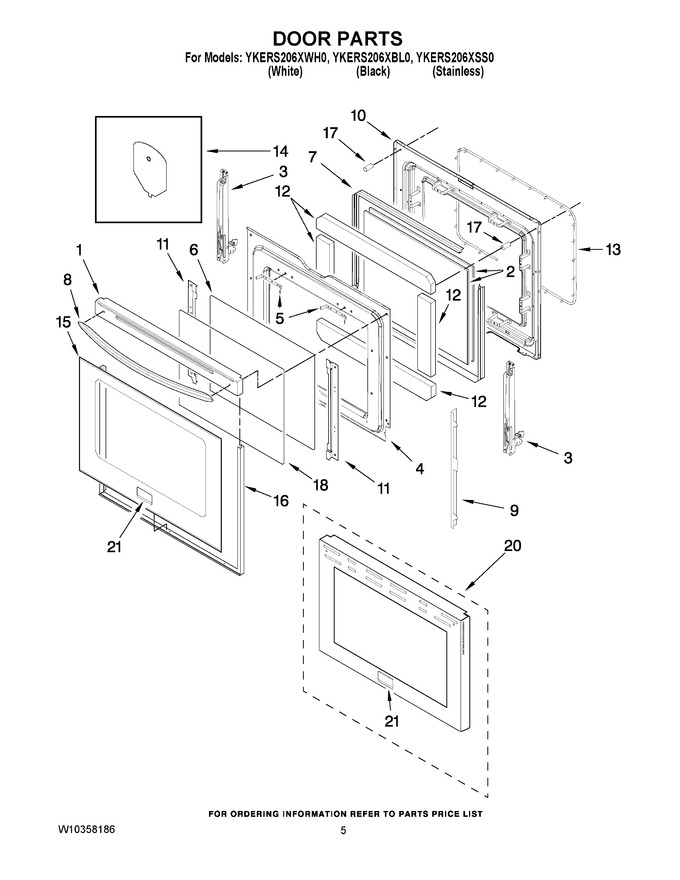

04 - Door Parts


05 - Drawer Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10348025		Trim, Door Top (white)				$ 57.94
2	W10350569		Glass, Inner				$ 98.26
2	W10350571		Glass, Inner		Appelez-nous	-
3	W10350586		Hinge-door				$ 32.18
4	W10350551		Retainer, Door Insulation		Appelez-nous	-
5	W10350617		Bracket, Glass Spacer (stainless Model Only)		Appelez-nous	-
6	W10350606		Glass, Airwash (stainless)				$ 92.12
6	W10350579		Glass, Airwash (black)		Appelez-nous	-
7	W10350584		Frame, Glass Inner				$ 31.93
8	W10350605		Handle, Door (stainless)				$ 125.83
8	W10347824		Handle, Door (white)		Appelez-nous	-
9	W10350616		Bracket, Glass Door (stainless Model Only)		Appelez-nous	-
10	W10350572		Lining, Door				$ 141.29
11	W10350589		Bracket, Glass				$ 30.71
12	W10350552		Insulation, Door				$ 39.91
13	W10350574		Seal, Door				$ 61.55
14	W10350585		Clip, Door Glass		Appelez-nous	-
15	W10357227		Glass, Door With Badge (white)				$ 208.22
16	W10350550		Trim, Door (white)				$ 56.14
17	W10350610		Spacer, Door Handle (stainless Model Only)				$ 8.70
18	W10357230		Glass, Oven Door Black With Foil (stainless Model Only)				$ 197.81
20	W10357232		Panel, Door-outer With Badge (stainless Model Only)				$ 247.23
21	3191516		Nameplate (white)		Appelez-nous	-
21	W10852683		Nameplate (stainless)   (Replaces: W10113961)				$ 104.26

    View Diagram in Separate Window       Print Part List
