01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts (not Included)

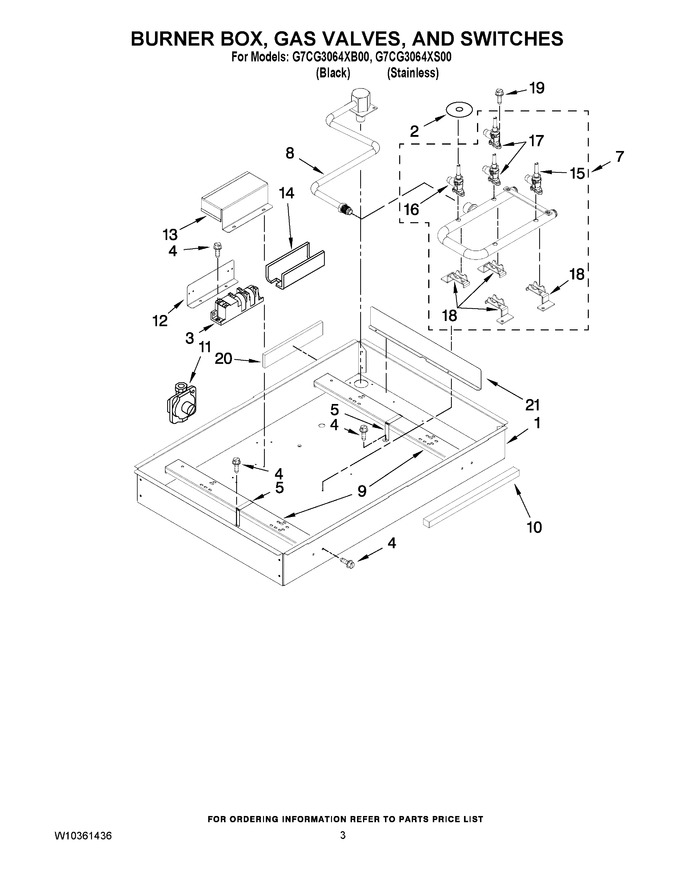

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10300361		Burner Box		Appelez-nous	-
2	WP3188425		Seal, Switch   (Replaces: 3191387)				$ 82.61
3	WPW10110491		Module, Spark   (Replaces: W10110488)			Immediately	$ 276.35
4	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
5	W10300397		Bracket, Hold Down				$ 25.61
7	W10284355		Manifold, Assemble				$ 247.04
8	W10286588		Pipe, Fitting		Appelez-nous	-
9	W10331608		Rail, Long		Appelez-nous	-
10	9760045		Foam, Blower				$ 236.42
11	W11087445		Regulator, Pressure   (Replaces: 7510P093-60)			Immediately	$ 177.34
12	W10319059		Bracket, Spark Module   (Replaces: W10268387)		Appelez-nous	-
13	W10268420		Shield, Spark Module		Appelez-nous	-
14	W10244688		Insulation, Spark Module		Appelez-nous	-
15	W10441650		Valve, Gas (rf)   (Replaces: W10256087)				$ 232.62
16	W10286713		Valve, Gas (lr)				$ 118.25
17	W10286712		Valve, Gas (lf,rr)				$ 107.40
18	W10286694		Bracket, Valve		Appelez-nous	-
19	W11666001		Screw   (Replaces: W10246216)				$ 12.24
20	W10331235		Insulation, Lateral		Appelez-nous	-
21	W10331240		Shield, Heat		Appelez-nous	-
NI	W10285249		Tubing, Gas (rf)		Appelez-nous	-
NI	W10300394		Tubing, Gas (lf)				$ 31.92
NI	W10285248		Tubing, Gas (rr)		Appelez-nous	-
NI	W10285247		Tubing, Gas (lr)		Appelez-nous	-
