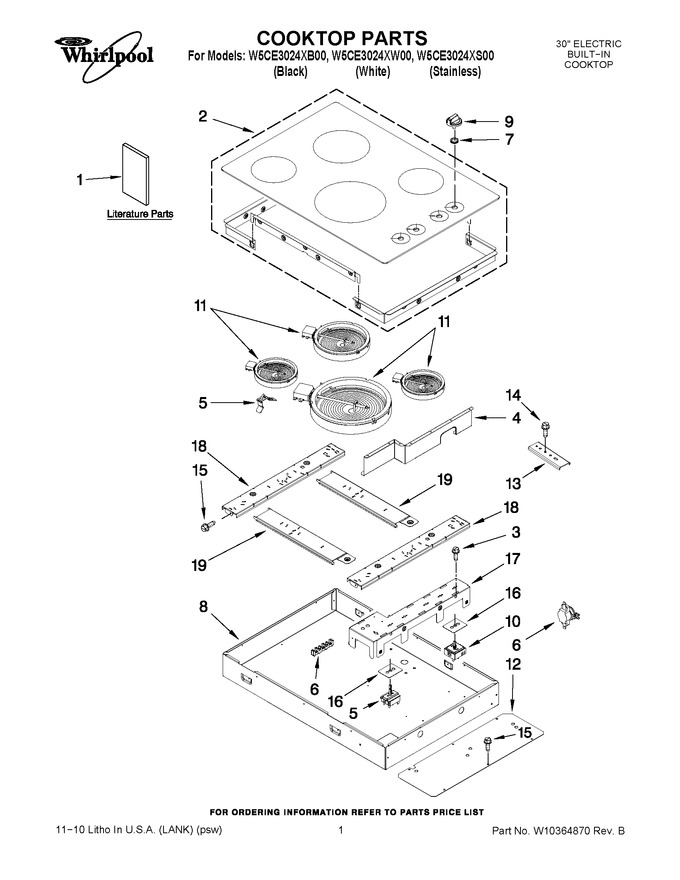

01 - Cooktop Parts
02 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10346695 | Installation Instructions |
|
- | |||||
| 1 | W10346696 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | W10291395 | Wiring Diagram |
|
- | |||||
| 2 | W10365156 | Wiring Diagram (white) (Replaces: W10318978) |
|
$ 602.72 | |||||
| 2 | W10365154 | Wiring Diagram (black) (Replaces: W10318977) |
|
$ 873.10 | |||||
| 2 | W10365155 | Wiring Diagram (stainless) (Replaces: W10352556) |
|
$ 526.92 | |||||
| 3 | WP486579 | Screw (Replaces: 311865) |
|
$ 6.61 | |||||
| 4 | W10311796 | Shield, Switch |
|
- | |||||
| 5 | WPW10225448 | Spring, Push-in (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 6 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 31.65 | ||||
| 7 | WPW10293874 | Grommet, Infinite Switch (Replaces: W10293874) |
|
Immediately | $ 7.25 | ||||
| 8 | W10311952 | Box, Burner |
|
- | |||||
| 9 | WPW10316664 | Knob, Control (stainless) (Replaces: W10316664) |
|
Immediately | $ 22.91 | ||||
| 9 | W10859325 | Knob, Control (white) (Replaces: W10316663) |
|
$ 17.65 | |||||
| 9 | WPW10316662 | Knob, Control (black) (Replaces: W10316662) |
|
Immediately | $ 19.07 | ||||
| 10 | WPW10244639 | Switch, Infinite (rf) (Replaces: W10244639) |
|
Immediately | $ 127.10 | ||||
| 10 | WP74007840 | Switch, Infinite (rr) (Replaces: 7403P755-60) |
|
Immediately | $ 163.25 | ||||
| 10 | WPW10326246 | Switch, Infinite (lf) (Replaces: W10326246) |
|
$ 131.16 | |||||
| 10 | W10861720 | Switch, Infinite (lr) (Replaces: W10312187) |
|
$ 128.64 | |||||
| 11 | WP8273993 | Element, Surface (rf) (Replaces: 8273993) |
|
Immediately | $ 220.06 | ||||
| 11 | W11047722 | Element, Surface (rf) (Replaces: 8273992) |
|
Immediately | $ 119.21 | ||||
| 11 | W11171119 | Element, Surface (lf/rr) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 12 | W10311956 | Plate, Bottom |
|
$ 79.92 | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 16 | WP71002569 | Gasket, Switch (Replaces: 7201P077-60) |
|
Immediately | $ 9.06 | ||||
| 17 | W10291138 | Plate, Switch |
|
- | |||||
| 18 | W10311789 | Rail, Vertical |
|
$ 63.05 | |||||
| 19 | W10311790 | Rail, Horizontal |
|
- |
