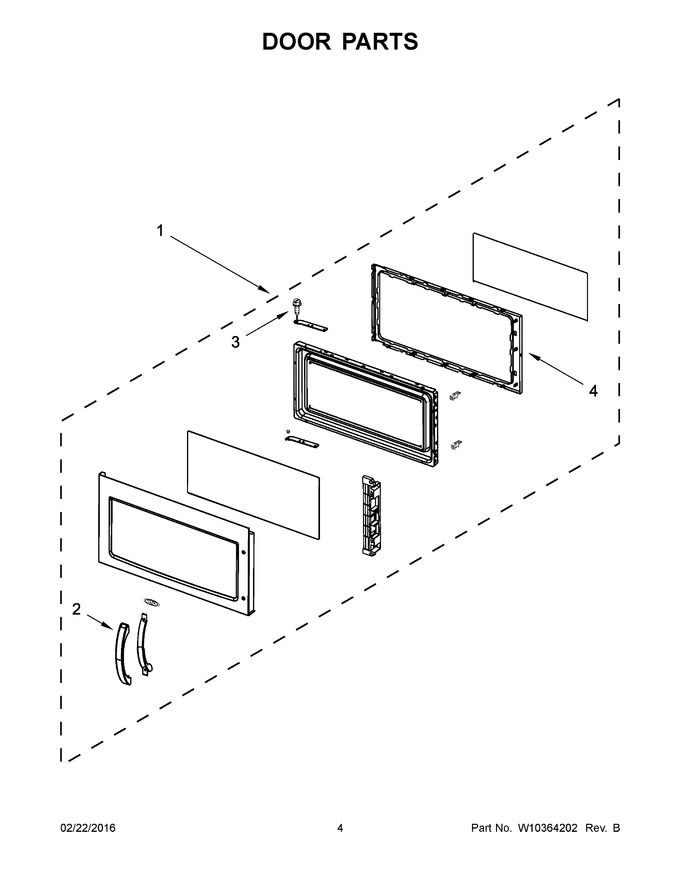

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10247772 | Complete Door (white) |
|
$ 280.83 | |||||
| 2 | W10445124 | Handle (white) (Replaces: W10211466) |
|
$ 185.90 | |||||
| 3 | W10138802 | Screw |
|
$ 9.80 | |||||
| 4 | W10640812 | Cover, Choke |
|
$ 149.47 | |||||
| 1A | W10247770 | Complete Door (black) |
|
$ 281.50 | |||||
| 1B | W10315778 | Complete Door (universal Silver) |
|
- | |||||
| 1C | W10247773 | Complete Door (stainless) |
|
$ 251.22 | |||||
| 2A | W10445138 | Handle (black) (Replaces: W10211467) |
|
$ 182.15 | |||||
| 2B | W10210887 | Handle (stainless) |
|
$ 160.95 |
