SELECT A DIAGRAM

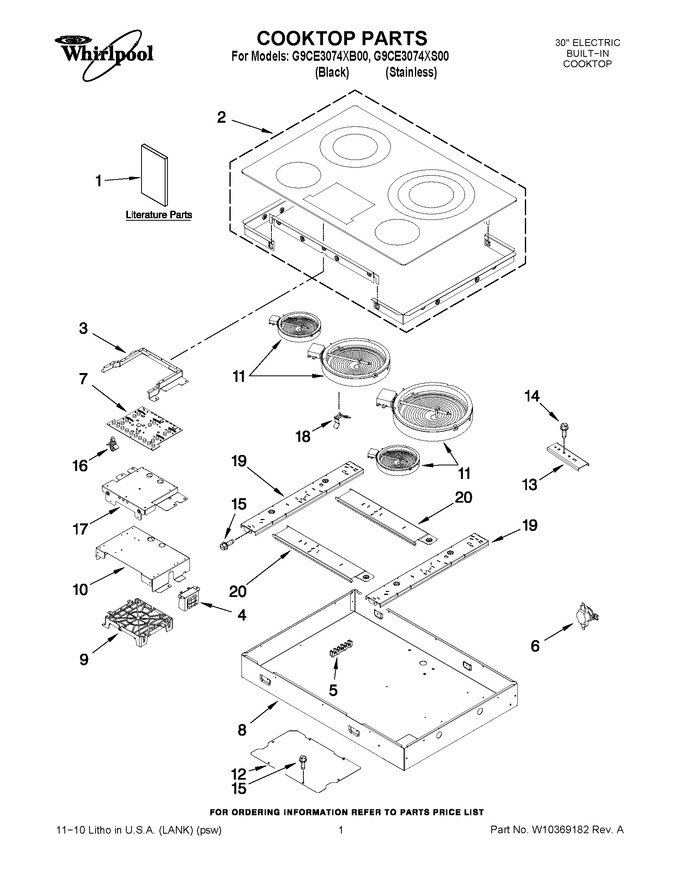

01 - Cooktop Parts


02 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10346695		Installation Instructions		Appelez-nous	-
1	W10346696		Use & Care Guide		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	W10325428		Tech Sheet (english)		Appelez-nous	-
1	W10342106		Tech Sheet (french)		Appelez-nous	-
2	W10365149		Cooktop (stainless (stainless Includes Trim))   (Replaces: W10352564)				$ 630.08
2	W10365148		Cooktop (black)   (Replaces: W10318984)				$ 500.93
3	W10311898		Shield, Outer		Appelez-nous	-
4	WP9760588		Transfromer   (Replaces: 9760588)				$ 237.07
5	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 31.65
6	WP7450P034-60		Limit, Oven   (Replaces: 7450P034-60)				$ 195.82
7	WPW10325426		User Interface   (Replaces: W10325426)				$ 352.41
8	WPW10311953		Box, Burner   (Replaces: W10311953)				$ 226.48
9	W10353571		Appliance Mgr.				$ 348.44
10	W10311795		Plate, Switch		Appelez-nous	-
11	W10823720		Element, Surface (rr)   (Replaces: W10187839)			Immediately	$ 302.91
11	WPW10275049		Element, Surface (lr)   (Replaces: W10275049)			Immediately	$ 282.81
11	W11171119		Element, Surface (lf/rf)   (Replaces: 8273994)			Immediately	$ 164.01
12	W10312152		Plate, Bottom		Appelez-nous	-
13	8186533		Bracket, Cooktop Mounting   (Replaces: 4455917)				$ 79.60
14	WP3400093		Screw   (Replaces: 3400093)				$ 6.47
15	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
16	W10225914		Support, Locking		Appelez-nous	-
17	W10311794		Plate, Support				$ 149.35
18	WPW10225448		Spring, Push-in   (Replaces: W10225448)			Immediately	$ 9.36
19	W10311788		Rail, Vertical		Appelez-nous	-
20	W10311792		Rail, Horizontal		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
