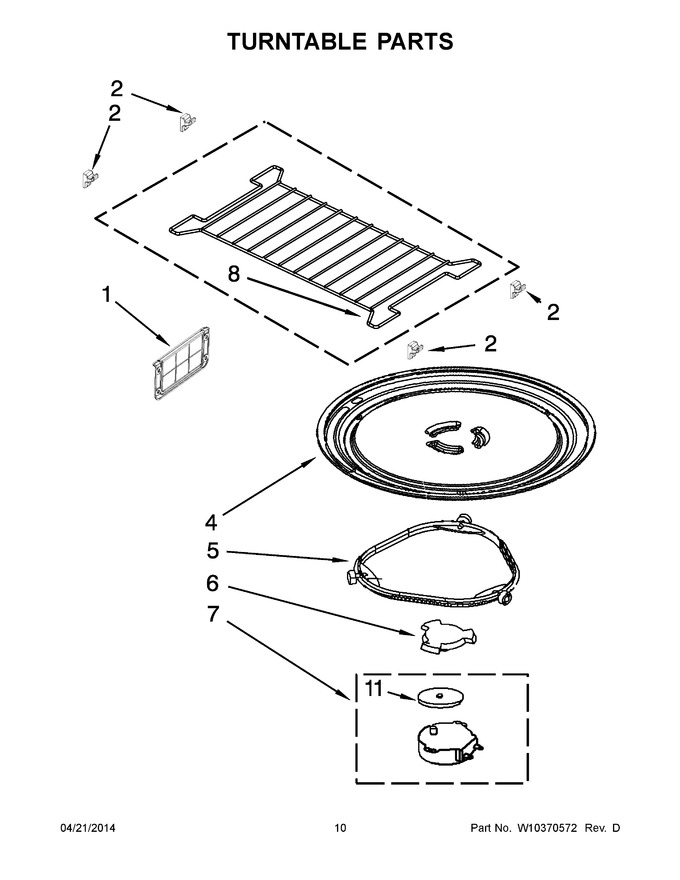

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10249516 | Cover, Mica |
|
- | |||||
| 2 | W10840759 | Hook, Microwave Rack (Replaces: W10245207) |
|
- | |||||
| 4 | 4393799 | Turntable |
|
$ 82.90 | |||||
| 5 | W11252182 | Ring, Turntable (Replaces: 8206227) |
|
Immediately | $ 35.60 | ||||
| 6 | W10435116 | Driver, Turntable (Replaces: 8206228) |
|
$ 29.54 | |||||
| 7 | W10143959 | Motor, Turntable |
|
- | |||||
| 8 | W10249618 | Rack |
|
$ 23.78 | |||||
| 11 | W10164716 | Plate, Water Proof |
|
$ 30.03 |
