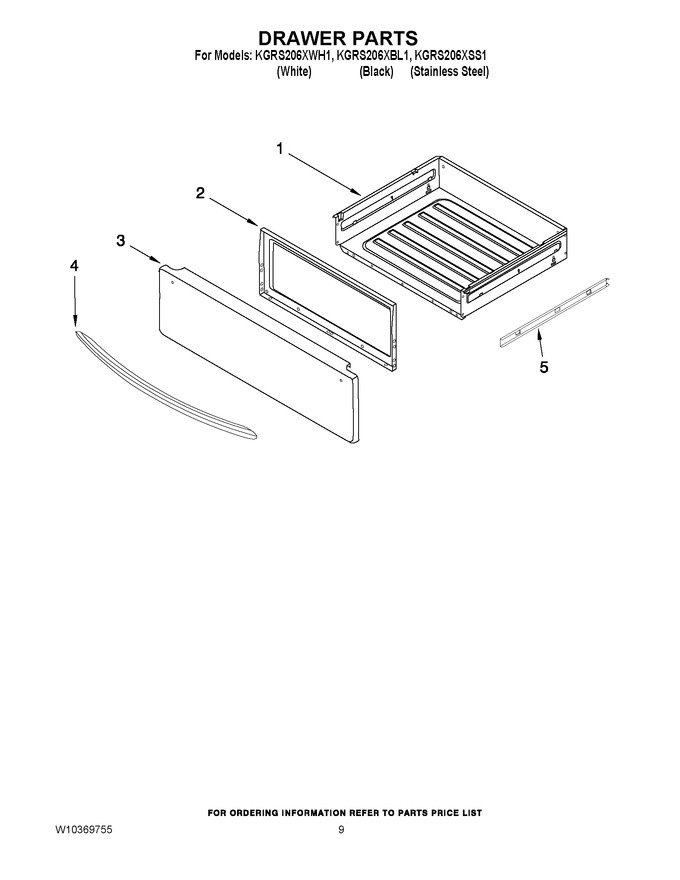

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10347679 | Drawer, Utility |
|
$ 137.27 | |||||
| 2 | W10347683 | Liner, Drawer Front Frame |
|
- | |||||
| 3 | W10347688 | Panel, Drawer, Outer (white) |
|
- | |||||
| 3 | W10347685 | Panel, Drawer, Outer (black) |
|
- | |||||
| 3 | W10351947 | Panel, Drawer, Outer (stainless) |
|
- | |||||
| 4 | W10347824 | Handle, Drawer (white) |
|
- | |||||
| 4 | W10347826 | Handle, Drawer (black) |
|
- | |||||
| 4 | W10350605 | Handle, Drawer (stainless) |
|
$ 125.83 | |||||
| 5 | W10347664 | Glide, Drawer (lh) |
|
$ 46.56 | |||||
| 5 | W10347665 | Glide, Drawer (rh) |
|
$ 42.06 |
