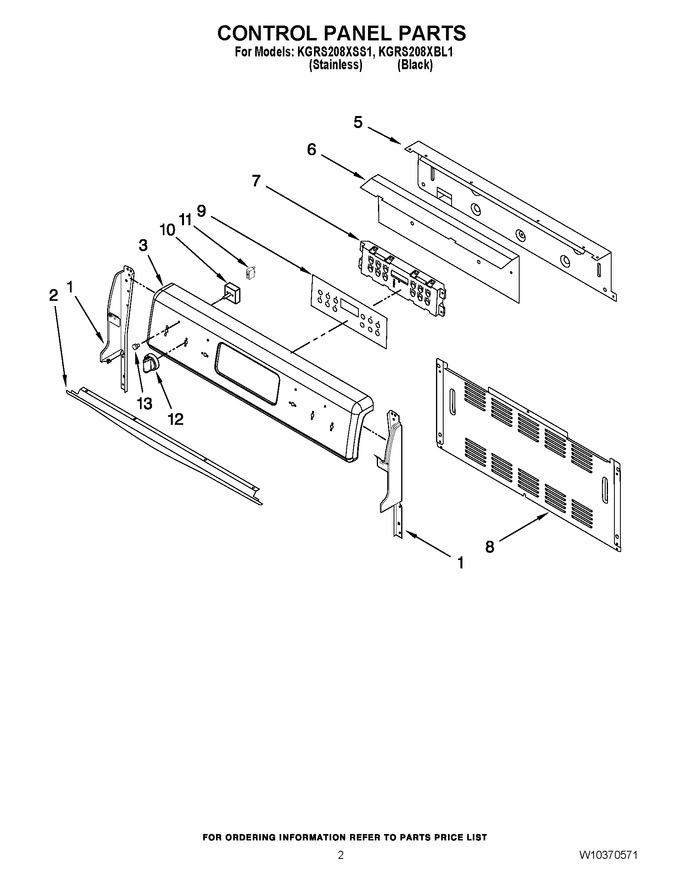

02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10340735 | Endcap, Right Hand (black) |
|
- | |||||
| 1 | W10340740 | Endcap, Left Hand (black) |
|
- | |||||
| 2 | W10340823 | Heat Shield,visor (black) |
|
$ 31.94 | |||||
| 3 | W10356151 | Panel, Backguard (stainless Steel) |
|
$ 122.98 | |||||
| 3 | W10355881 | Panel, Backguard (black) |
|
$ 122.85 | |||||
| 5 | W10340844 | Heat Shield |
|
- | |||||
| 6 | W10340724 | Rear Cover |
|
- | |||||
| 7 | W10355896 | Control |
|
$ 378.67 | |||||
| 8 | W10315160 | Cover, Main Wire |
|
$ 56.47 | |||||
| 9 | W10355898 | Overlay |
|
$ 29.09 | |||||
| 10 | W10349884 | Switch, Infinite Warmer |
|
$ 106.40 | |||||
| 11 | W10349885 | Light Indicator |
|
$ 32.16 | |||||
| 12 | W10350095 | Knob, Control (black) |
|
$ 16.34 | |||||
| 12 | WPW10350602 | Knob, Control (stainless) (Replaces: W10350602) |
|
$ 53.70 | |||||
| 13 | W10350097 | Lens-light Indicator |
|
$ 6.56 |
