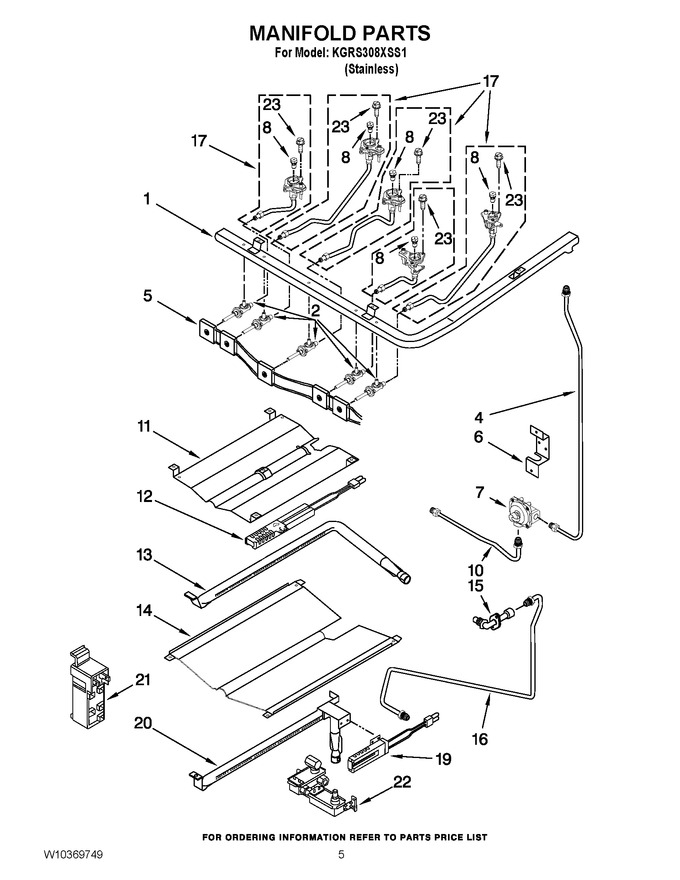

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10315164		Manifold, Pipe		Appelez-nous	-
2	W10315175		Valve, Burner (9.5k (lf)				$ 251.99
2	W10355923		Valve, Burner (14/17k (rf)				$ 219.95
2	W10315171		Valve, Burner (5k (rr)				$ 243.68
2	W10361221		Valve, Burner (center)		Appelez-nous	-
2	W10315168		Valve, Burner (12/14k (lr)				$ 164.08
4	W10346002		Tubing, Gas		Appelez-nous	-
5	W10345838		Harness, Igniter Includes Switches				$ 63.74
6	W10346033		Bracket, Regulator		Appelez-nous	-
7	W10346004		Regulator,		Appelez-nous	-
8	W10356899		Orifice (4k (lr))		Appelez-nous	-
8	WPW10356900		Orifice (18k (rf)   (Replaces: W10361222)				$ 185.15
8	W10346170		Orifice (9.5k (lf & Center)				$ 86.10
8	W10346165		Orifice (5k (rr)		Appelez-nous	-
10	W10346034		Tube, Valve To Regulator				$ 43.74
11	W10346068		Baffle, Broil Burner		Appelez-nous	-
12	W11084521		Ignitor, Burner   (Replaces: W10346056)			Immediately	$ 368.37
13	W10346063		Burner, Broiler		Appelez-nous	-
14	W10346057		Baffle, Oven Burner		Appelez-nous	-
15	W10346064		Elbow, Fitting		Appelez-nous	-
16	W10346062		Tube, Valve To Mixer		Appelez-nous	-
17	W10345910		Ignitor/orifice Assembly (5k (rr)				$ 46.63
17	W10345917		Ignitor/orifice Assembly (9.5k (lf)		Appelez-nous	-
17	W10356898		Ignitor/orifice Assembly (14k (lr)				$ 200.17
17	W10355926		Ignitor/orifice Assembly (18k (rf)				$ 223.77
17	WPW10345919		Ignitor/orifice Assembly (9.5k (center)   (Replaces: W10345919)				$ 113.45
19	W10346130		Ignitor, Oven Burner				$ 133.30
20	W10346052		Burner, Oven		Appelez-nous	-
21	W11084522		Module, Spark   (Replaces: W10345839)				$ 331.45
22	W10346047		Valve, Safety				$ 251.35
23	W10346140		Screw, Ignitor/orifice				$ 27.80
NI	W10346229		Harness, Ignitor		Appelez-nous	-
NI	W10346138		Cover, Broil Ignitor		Appelez-nous	-
NI	W10345844		Bracket, Support Spark Module		Appelez-nous	-
NI	W10356903		Spuds, Lp Gas (kit Of 5)				$ 57.41
