01 - Cooktop, Burner And Grate Parts

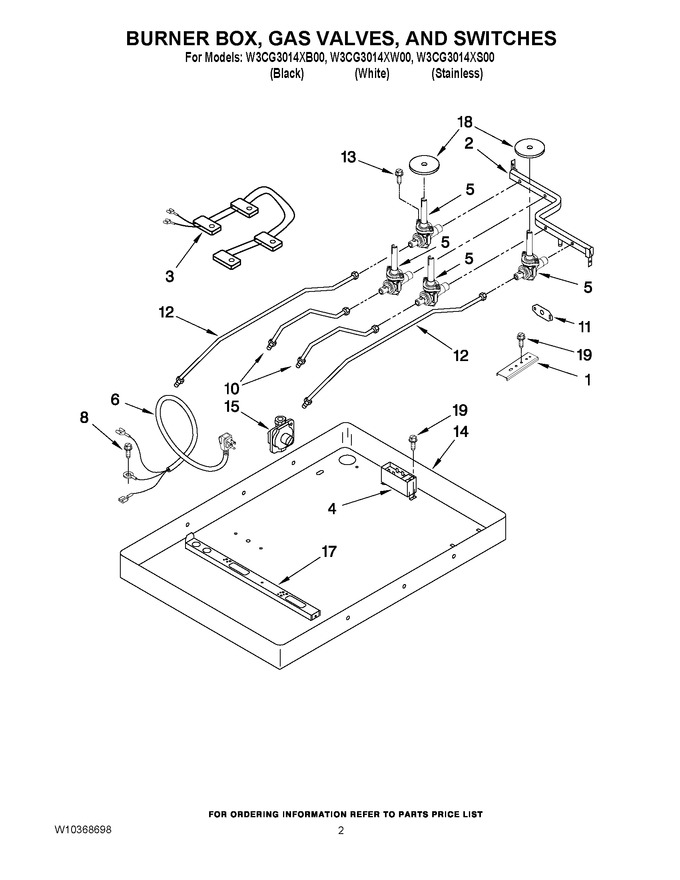

02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8186533 | Bracket, (2) Cooktop Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 2 | 9759354 | Pipe, Manifold |
|
$ 146.31 | |||||
| 3 | WP4456905 | Harness & Switches (Replaces: 4456905) |
|
Immediately | $ 176.83 | ||||
| 4 | WPW10110491 | Spark Module (Replaces: W10110488) |
|
Immediately | $ 276.35 | ||||
| 5 | WP4456816 | Valve, Burner (auxi (red) Rf) (Replaces: 4456816) |
|
Immediately | $ 286.55 | ||||
| 5 | WP4456817 | Valve, Burner (large (black) Lf,lr,rr) (Replaces: 4456817) |
|
$ 286.38 | |||||
| 6 | W10392007 | Power Cord (Replaces: 9763116) |
|
$ 96.25 | |||||
| 8 | 12002277 | Screw, Valve (Replaces: 7101P640-60) |
|
$ 272.78 | |||||
| 10 | 3191318 | Tubing, Burner Rr & Rf |
|
$ 97.98 | |||||
| 11 | 8286858 | Plate, Manifold |
|
- | |||||
| 12 | 3191320 | Tubing, Burner Lr & Lf |
|
$ 102.95 | |||||
| 13 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 14 | 4456780 | Box, Burner |
|
- | |||||
| 15 | W11170853 | Regulator, Pressure (Replaces: W10131956) |
|
$ 283.08 | |||||
| 17 | W10203756 | Rail, Burner (2) |
|
- | |||||
| 18 | WP3188425 | Seal, (4) Switch Cover (Replaces: 3191387) |
|
$ 82.61 | |||||
| 19 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| NI | WP8286320 | Gas Conversion Kit (natural Gas To Lp Gas) (Replaces: 8286320) |
|
$ 115.78 |
