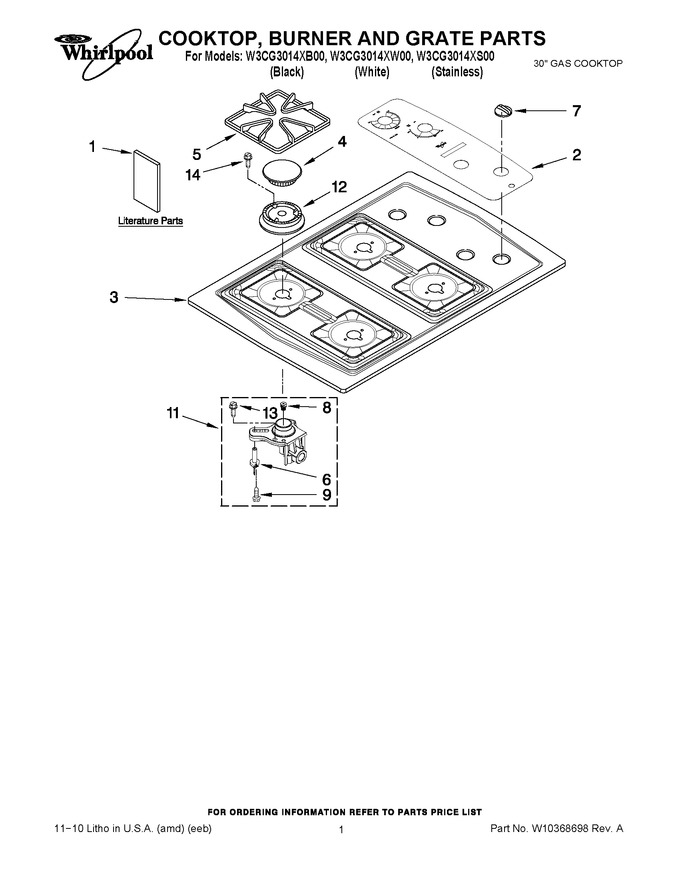

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3192098 | Wiring Diagram |
|
- | |||||
| 1 | W10131955 | Installation Instructions |
|
- | |||||
| 1 | 8304571 | Installation/ Undercounter |
|
- | |||||
| 1 | 8286620 | Instructions, Conversion |
|
- | |||||
| 1 | W10162190 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | WP8286502 | Panel, Control (black) (Replaces: 8286502) |
|
$ 127.00 | |||||
| 2 | 8286503 | Panel, Control (white) |
|
- | |||||
| 3 | WP3191242 | Cooktop (black) (Replaces: 3191242) |
|
$ 270.94 | |||||
| 3 | W11230936 | Cooktop (stainless) (Replaces: W10157843) |
|
$ 377.15 | |||||
| 3 | WP3191243 | Cooktop (white) (Replaces: 3191243) |
|
$ 279.93 | |||||
| 4 | W11189648 | Cap, Burner Kit Of 4 (white) (Replaces: W10237940) |
|
- | |||||
| 4 | WPW10218223 | Cap, Burner Kit Of 4 (black) (Replaces: W10218223) |
|
$ 65.85 | |||||
| 5 | WPW10268483 | Grate Kit Of 4 (black) (Replaces: W10268483) |
|
$ 120.02 | |||||
| 5 | W10268484 | Grate Kit Of 4 (white) |
|
- | |||||
| 6 | WP9782116 | Electrode (Replaces: 9782116) |
|
Immediately | $ 49.45 | ||||
| 7 | WP8286057BL | Knob, Control (black) (Replaces: 8286057BL) |
|
$ 19.21 | |||||
| 7 | WP8286057WH | Knob, Control (white) (Replaces: 8286057WH) |
|
$ 6.26 | |||||
| 8 | WP9753929 | Orifice (lf) (Replaces: 9753929) |
|
$ 72.63 | |||||
| 8 | WP3192523 | Orifice (lr, Rr) (Replaces: 3192523) |
|
$ 80.19 | |||||
| 8 | 8286473 | Orifice (rf) |
|
$ 73.44 | |||||
| 9 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 11 | W10128449 | Holder, Orifice (rf) |
|
- | |||||
| 11 | W10268479 | Holder, Orifice (lf) |
|
- | |||||
| 11 | W10268478 | Holder, Orifice (lr,rr) |
|
- | |||||
| 12 | WPW10406243 | Head, Burner (rf) (Replaces: 8286181) |
|
Immediately | $ 33.50 | ||||
| 12 | WPW10406797 | Head, Burner (lf,lr,rr) (Replaces: 8286182) |
|
$ 79.64 | |||||
| 13 | WP8273062 | Screw, Electrode (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 14 | WP3368921 | Screw, Burner Head (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| NI | 4456626 | Harness, Wire Ignitor 15`` |
|
$ 66.34 | |||||
| NI | 4456627 | Harness, Wire (ignitor 28``) |
|
$ 189.13 |
