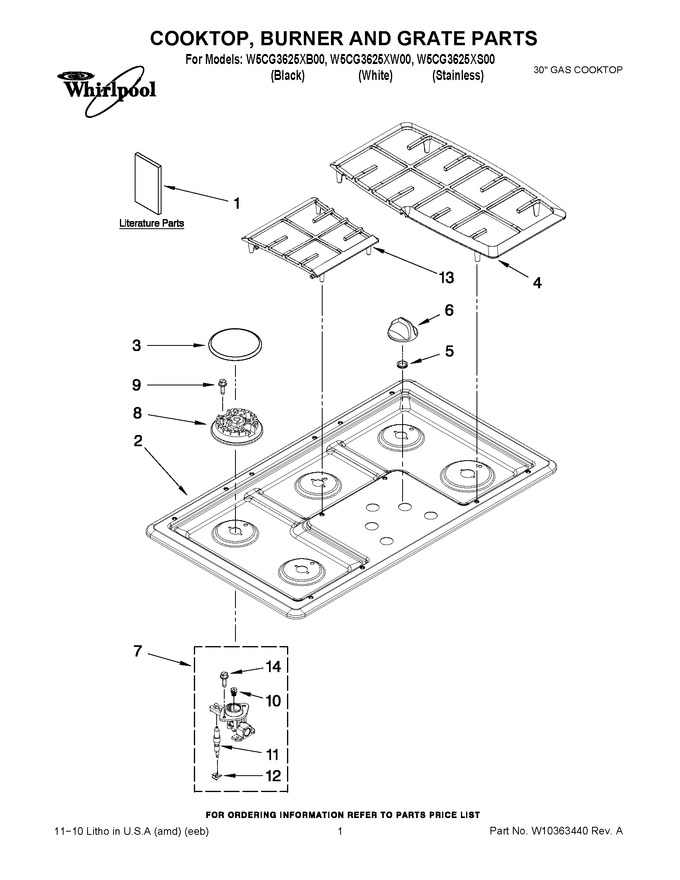

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10285002 | Installation Instructions |
|
- | |||||
| 1 | W10344645 | Use & Care Guide |
|
- | |||||
| 1 | W10292747 | Instructions, Lp Conversion |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | W10285205 | Cooktop (black) |
|
- | |||||
| 2 | W10285206 | Cooktop (white) |
|
- | |||||
| 2 | W10285204 | Cooktop (stainless) |
|
- | |||||
| 3 | WPW10300345 | Cap, Burner (black) (Replaces: W10300345) |
|
$ 125.42 | |||||
| 3 | W10300346 | Cap, Burner (white) |
|
- | |||||
| 4 | WPW10286632 | Grate, Burner (black) (Replaces: W10286632) |
|
$ 245.01 | |||||
| 4 | W10286640 | Grate, Burner (white) |
|
- | |||||
| 5 | WP74007705 | Grommet (Replaces: 8008P065-60) |
|
Immediately | $ 6.80 | ||||
| 6 | WPW10284883 | Knob, Control (black) (Replaces: W10284883) |
|
Immediately | $ 18.45 | ||||
| 6 | W10284884 | Knob, Control (white) |
|
$ 18.03 | |||||
| 7 | WPW10256119 | Holder, Orifice (center) (Replaces: W10256119) |
|
$ 81.46 | |||||
| 7 | W10256122 | Holder, Orifice (rf) |
|
$ 84.75 | |||||
| 7 | W10256120 | Holder, Orifice (lf,lr,rr) |
|
$ 70.61 | |||||
| 8 | WPW10256024 | Spreader, Flame (center) (Replaces: W10256024) |
|
$ 78.06 | |||||
| 8 | WPW10256027 | Spreader, Flame (rf) (Replaces: W10256027) |
|
Immediately | $ 86.59 | ||||
| 8 | WPW10256025 | Spreader, Flame (lf,lr,rr) (Replaces: W10256025) |
|
Immediately | $ 78.06 | ||||
| 9 | WPW10373929 | Screw, Burner Top (Replaces: W10345316) |
|
$ 30.81 | |||||
| 10 | WPW10256128 | Orifice (center) (Replaces: W10256128) |
|
$ 86.10 | |||||
| 10 | WPW10340423 | Orifice (rf) (Replaces: W10340423) |
|
$ 86.10 | |||||
| 10 | W10256129 | Orifice (lf,lr,rr) |
|
$ 86.10 | |||||
| 11 | W10833887 | Electrode, Burner (Replaces: W10256047) |
|
Immediately | $ 28.59 | ||||
| 12 | W10256046 | Spring, Electrode |
|
$ 9.91 | |||||
| 13 | W10284943 | Grate, Center (white) |
|
- | |||||
| 13 | W10286634 | Grate, Center (black) |
|
- | |||||
| 14 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 |
