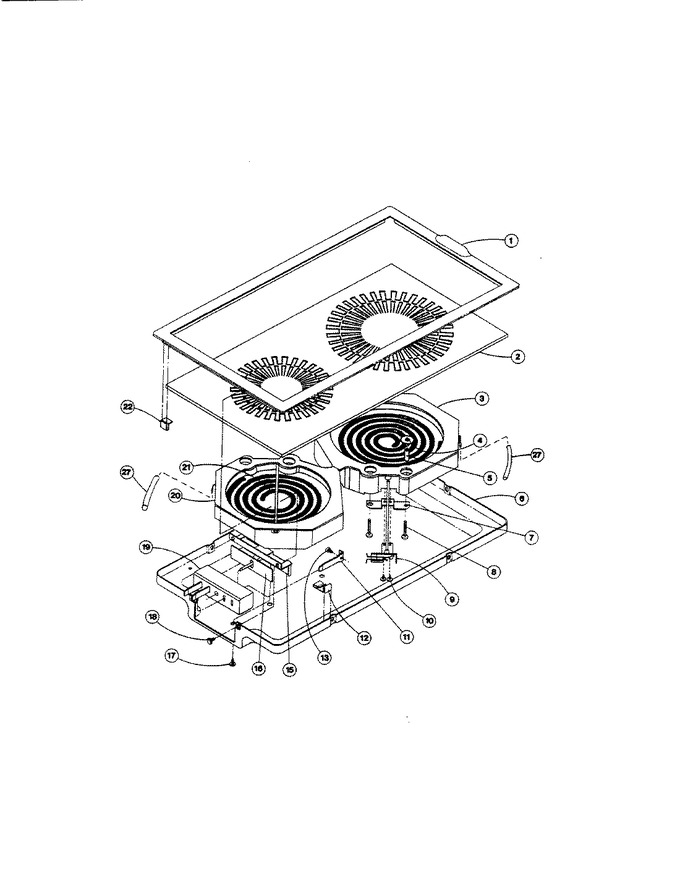

01 - Black Glass Cartridge


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y700640		Cartridges , Bright Rim		Appelez-nous	-
2	Y700522		Black Glass		Appelez-nous	-
3	Y700945		Large Element Block		Appelez-nous	-
3	700946		Large Element Block		Appelez-nous	-
4	700947		T-nut		Appelez-nous	-
5	700948		Spacer		Appelez-nous	-
6	700949		Cartridge Pan		Appelez-nous	-
6	700950		Cartridge Pan		Appelez-nous	-
7	DE81-05729A		Limiter Mounting Bracket   (Replaces: 700951)				$ 404.51
8	Y707402		Screw		Appelez-nous	-
9	700952		Limiter, Large Block				$ 750.61
10	WP74004005		Screw   (Replaces: Y708359)				$ 6.95
11	Y708572		Spade, Contact			Immediately	$ 11.34
12	Y708910		Clip		Appelez-nous	-
13	WP488234		Screw   (Replaces: Y700448)				$ 6.07
15	Y700648		Bracket, Retaining Assy.		Appelez-nous	-
16	708834		Insulator, Contact Spade				$ 13.49
17	WP59002061		Screw   (Replaces: Y707172)				$ 6.98
18	WP12990527		Screw   (Replaces: Y708955)			Immediately	$ 7.15
19	WPY708730		Block, Terminal   (Replaces: Y708730)			Immediately	$ 87.44
20	DE81-05731A		Small Element Block   (Replaces: 700954)				$ 387.11
20	Y700953		Small Element Block		Appelez-nous	-
21	700955		Limiter, Small Block		Appelez-nous	-
22	700956		Cartridge Pan Label		Appelez-nous	-
22	700528		Tinnerman Clip			Immediately	$ 54.13
22	700957		Cartridge Pan Label		Appelez-nous	-
27	700649		Wire Sleeve		Appelez-nous	-
NI	Y700645		Wire		Appelez-nous	-
NI	700644		Wire, Cream		Appelez-nous	-
NI	700643		Wire		Appelez-nous	-
NI	WP488234		Screw   (Replaces: 708861)				$ 6.07
