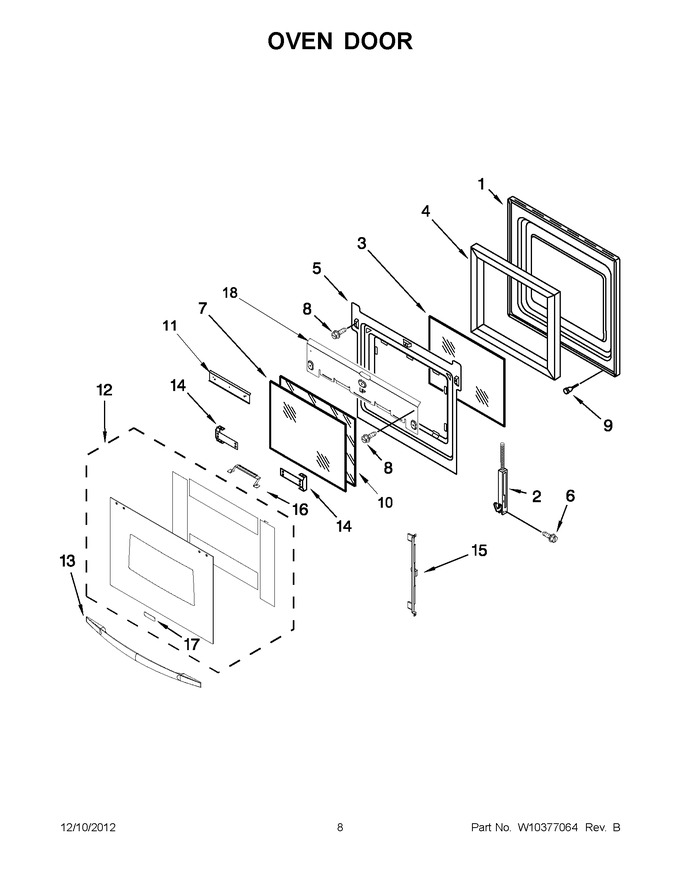

04 - Oven Door


05 - Internal Oven Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Panel, Door   (Replaces: 9759413)				$ 317.54
2	WP9760574		Hinge, Door (left)   (Replaces: 9760574)			Immediately	$ 60.36
2	WP9760575		Hinge, Door (right)   (Replaces: 9760575)			Immediately	$ 58.11
2	N/P		For Stainless Model Only		Appelez-nous	-
2	WP9760576		Hinge, Door (left)   (Replaces: 9760576)			Immediately	$ 50.81
2	9760573		Hinge, Door (right)				$ 48.80
3	WP9759225		Inner, Glass 4mm   (Replaces: 9759225)			Immediately	$ 174.78
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 162.66
5	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 275.13
6	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
7	9759228		Glass, Inner				$ 87.91
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
9	4448520		Bumper, Door				$ 19.07
10	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 182.86
11	4457114		Shield, Heat Bottom				$ 186.68
12	W10200755		Assembly, Door Glass (white)				$ 137.30
12	W10200754		Assembly, Door Glass (black)				$ 140.66
12	W10401225		Assembly, Door Glass (stainless)   (Replaces: W10176986)				$ 289.44
13	W10169801		Door Handle (black)				$ 79.57
13	W10169803		Door Handle (white)				$ 73.49
13	W10169798		Door Handle (stainless)				$ 78.71
14	4455804		Bracket, Handle (left)				$ 25.95
14	4455803		Bracket, Handle (right)				$ 30.70
15	WP9759229		Bracket, Side   (Replaces: 9759229)				$ 160.71
16	9759230		Bracket, Central				$ 36.30
17	W10175320		Badge				$ 41.71
18	4457104		Shield, Heat Top				$ 33.62
