SELECT A DIAGRAM

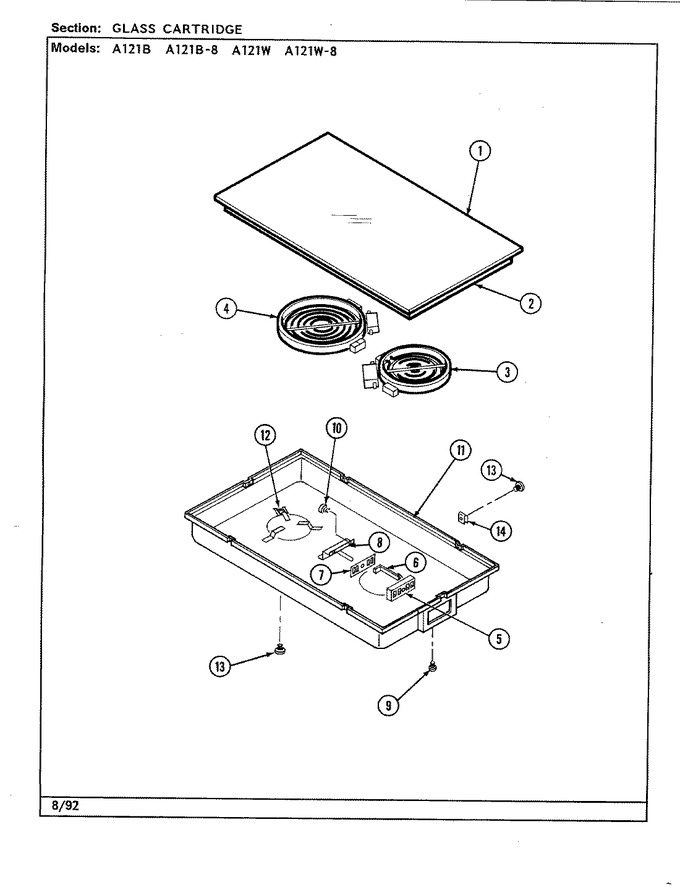

01 - Glass Cartridge
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y04100126 | Top, Assy. (blk) | 1 |
|
- | ||||
| 2 | Y708910 | Clip | 1 |
|
- | ||||
| 3 | W10823702 | Element, Radiant 6`` (Replaces: Y04100304) | 1 |
|
$ 310.65 | ||||
| 3 | Y700645 | Wire | 1 |
|
- | ||||
| 4 | W10823693 | Element, Radiant 8`` (Replaces: Y04100305) | 1 |
|
Immediately | $ 205.87 | |||
| 5 | WPY708730 | Block, Terminal (Replaces: Y708730) | 1 |
|
Immediately | $ 87.44 | |||
| 6 | Y708572 | Spade, Contact | 1 |
|
Immediately | $ 11.34 | |||
| 7 | 708834 | Insulator, Contact Spade | 1 |
|
$ 13.49 | ||||
| 8 | Y700648 | Bracket, Retaining Assy. | 1 |
|
- | ||||
| 9 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 10 | WP488234 | Screw (Replaces: 708861) | 1 |
|
$ 6.07 | ||||
| 11 | 04100128 | Pan, Cartridge | 1 |
|
- | ||||
| 12 | Y04100129 | Bracket, Anti-rotation | 1 |
|
- | ||||
| 13 | WPW10253196 | Screw (Replaces: Y707113) | 1 |
|
$ 3.76 |
