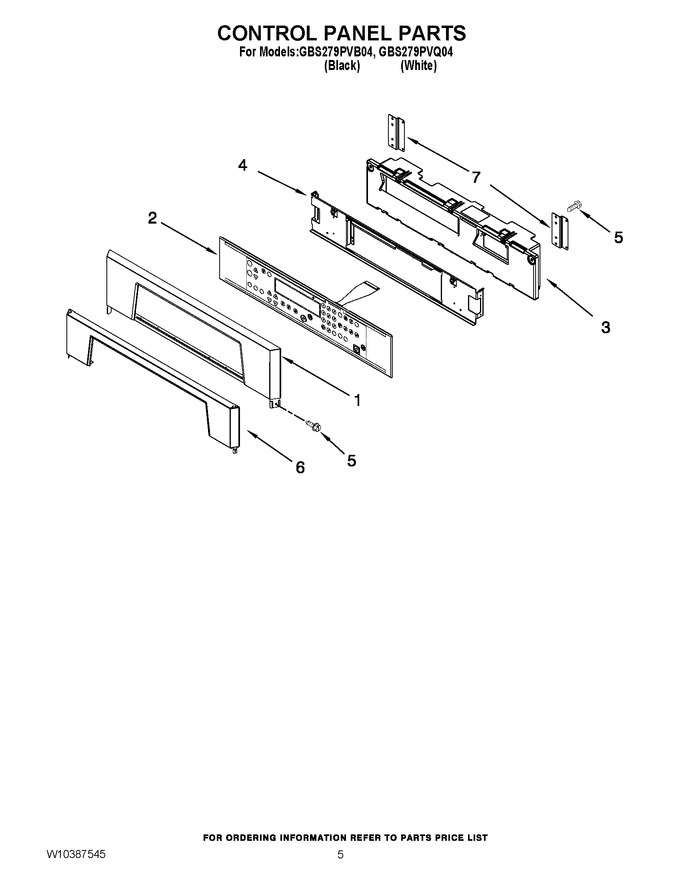

04 - Control Panel Parts
05 - Top Venting Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8302844 | Control Panel (black) |
|
$ 119.18 | |||||
| 1 | 8302845 | Control Panel (white) |
|
$ 114.38 | |||||
| 2 | W10172115 | Assembly, Switch (black) |
|
$ 310.25 | |||||
| 2 | W10172116 | Assembly, Switch (white) |
|
$ 275.59 | |||||
| 3 | W10251586 | Assembly, Control |
|
- | |||||
| 4 | W10212364 | Backer, Control Panel |
|
$ 40.59 | |||||
| 5 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 6.74 | |||||
| 6 | W10172172 | Trim, Control Panel (black) |
|
$ 27.49 | |||||
| 6 | W10172173 | Trim, Control Panel (white) |
|
$ 17.83 | |||||
| 7 | 8303119 | Bracket, Enclosure |
|
- |
