Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10156270 Control Panel Special Order $ 230.06

2 WP9761566 Switch, Membrane   (Replaces: 9761566) In-Stock Immediately $ 405.23

3 W10181439 Control, Interface Special Order $ 483.37

4 W10105370 Shield, Console Special Order $ 69.83

5 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

6 9761745 Bracket, Touchsensor Special Order $ 40.75

7 WPW10246104 Knob (lf)   (Replaces: W10246104) Special Order $ 41.36

8 WPW10246105 Knob (lr/rf/rr)   (Replaces: W10246105) Special Order $ 39.28

9 9780271 Screw Appelez-nous -
10 W10116195 Gasket, Vent Shield Special Order $ 77.94


    View Diagram in Separate Window     Print Icon   Print Part List

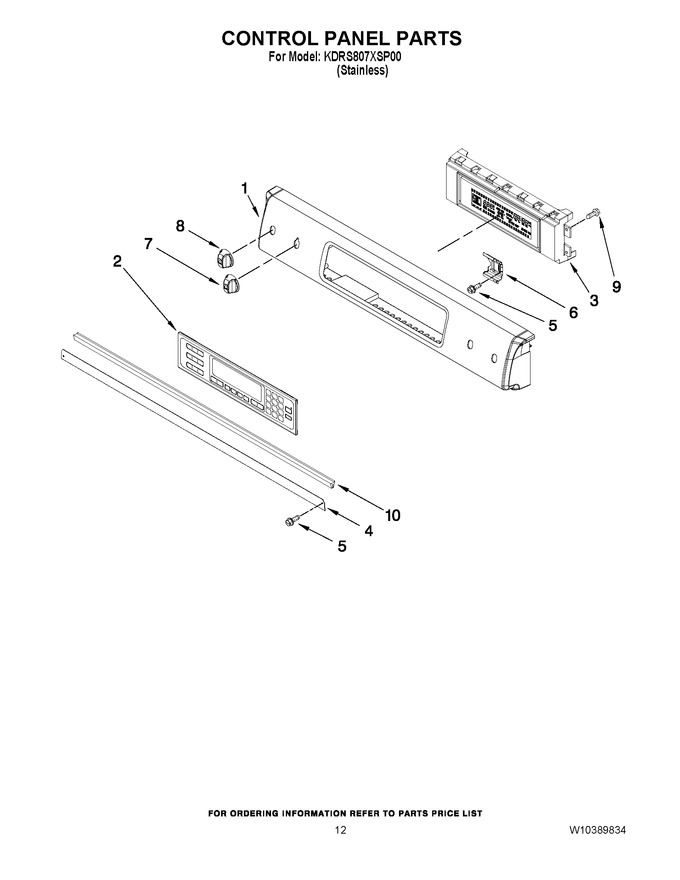

Diagram for KDRS807XSP00
