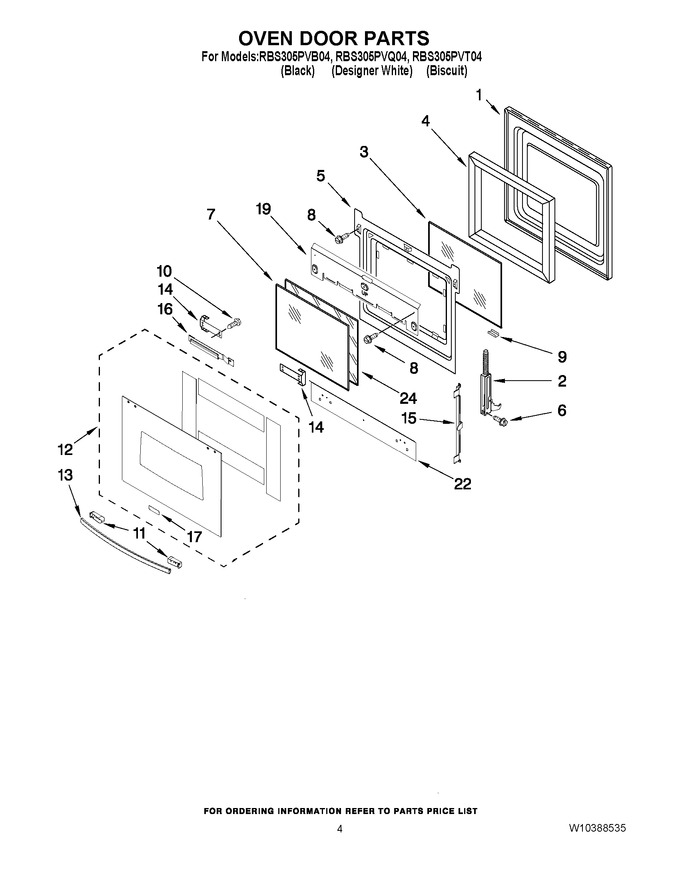

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Panel, Door   (Replaces: 9759413)				$ 317.54
2	WP9760575		Hinge, Door (right)   (Replaces: 9760575)			Immediately	$ 58.11
2	WP9760576		Hinge, Door (left)   (Replaces: 9760576)			Immediately	$ 50.81
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 182.86
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 162.66
5	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 275.13
6	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
7	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 174.78
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
9	W10318996		Retainer, Clip (biscuit)		Appelez-nous	-
9	W10318998		Retainer, Clip (black)		Appelez-nous	-
9	W10318997		Retainer, Clip (white)		Appelez-nous	-
10	W10214562		Screw		Appelez-nous	-
11	W10198847		Endcap, Handle (biscuit)		Appelez-nous	-
11	W10158702		Endcap, Handle (black)		Appelez-nous	-
11	W10168846		Endcap, Handle (white)		Appelez-nous	-
12	W10200754		Assembly, Door Glass (black)				$ 140.66
12	W10200756		Assembly, Door Glass (biscuit)				$ 138.93
12	W10200755		Assembly, Door Glass (white)				$ 137.30
13	W10169805		Door Handle (biscuit)		Appelez-nous	-
13	W10169801		Door Handle (black)				$ 79.57
13	W10169803		Door Handle (white)				$ 73.49
14	4455803		Bracket, Handle (right)				$ 30.70
14	4455804		Bracket, Handle (left)				$ 25.95
15	WP9759229		Bracket(2nd Glass)   (Replaces: 9759229)				$ 160.71
16	9759230		Bracket(3rd Glass)				$ 36.30
17	W10215072		Nameplate		Appelez-nous	-
19	4457104		Shield, Heat Top				$ 33.62
22	4457114		Shield, Heat Bottom				$ 186.68
24	9759228		Glass, Inner				$ 87.91
