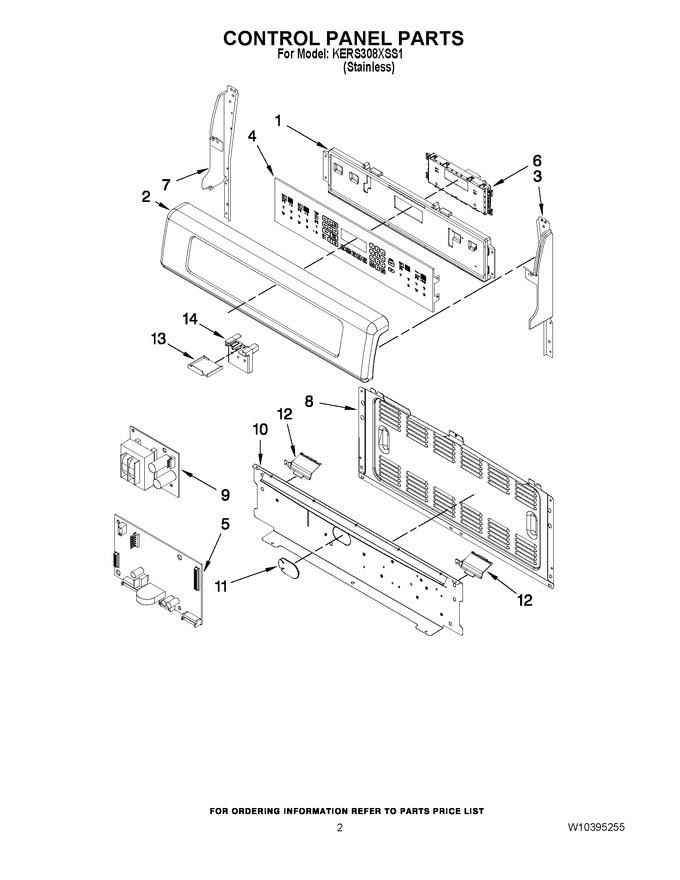

02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10356231 | Support, Control |
|
$ 94.70 | |||||
| 2 | W10355131 | Panel & Membrane Switch (stainless) |
|
$ 149.25 | |||||
| 3 | W10340735 | End Cap, Right (black) |
|
- | |||||
| 4 | W10361427 | Panel, Touchscreen |
|
$ 865.33 | |||||
| 5 | WPW10355189 | Board, Uib (Replaces: W10355189) |
|
$ 396.68 | |||||
| 6 | W10355132 | Control |
|
$ 398.79 | |||||
| 7 | W10340740 | End Cap, Left (black) |
|
- | |||||
| 8 | W10315160 | Cover, Rear Wire |
|
$ 56.47 | |||||
| 9 | WPW10355192 | Board, Power Supply (Replaces: W10355192) |
|
$ 223.26 | |||||
| 10 | W10350103 | Shield, Heat (black) |
|
- | |||||
| 11 | W10355174 | Cover, Hole |
|
- | |||||
| 12 | W10355162 | Bracket, Mount |
|
- | |||||
| 13 | W10355148 | Bracket, Mount |
|
- | |||||
| 14 | W10355139 | Bracket, Support |
|
- |
