SELECT A DIAGRAM

01 - Cooktop Parts


02 - Oven Parts


03 - Door Parts


04 - Drawer Parts


05 - Control Panel Parts


06 - Internal Oven Parts


07 - Top Venting Parts


08 - Optional Parts

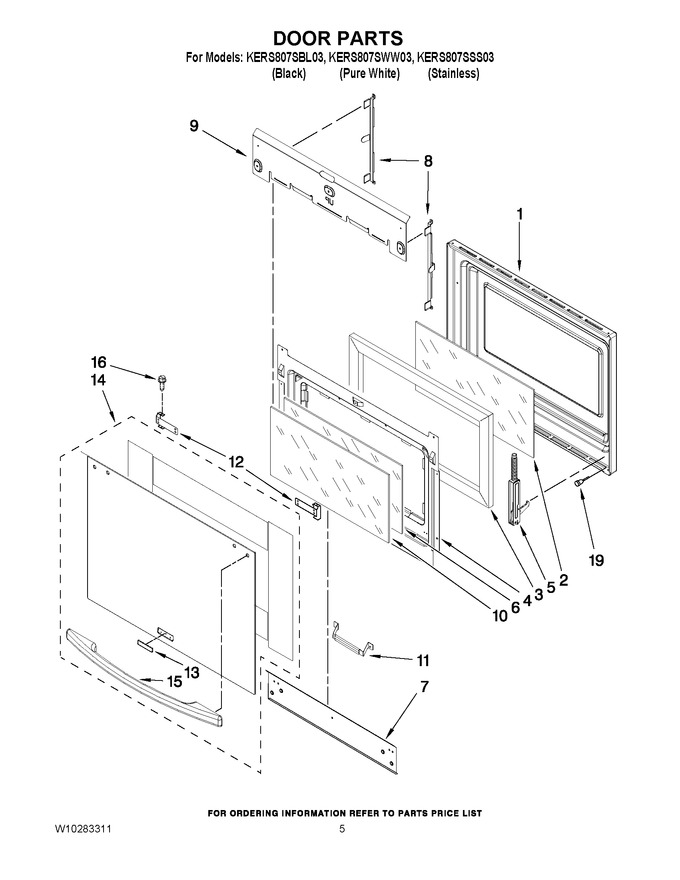

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Panel, Door   (Replaces: 9759413)				$ 317.54
2	WP9757706		Glass, Inner   (Replaces: 9757706)			Immediately	$ 127.76
3	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 162.66
4	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 275.13
5	WP9760579		Hinge, Oven Door (right)   (Replaces: 9760579)			Immediately	$ 64.35
5	WP9760574		Hinge, Oven Door (left)   (Replaces: 9760580)			Immediately	$ 60.36
6	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 174.78
7	4457114		Shield, Heat Bottom				$ 186.68
8	WP9759229		Bracket, Glass Side   (Replaces: 9759229)				$ 160.71
9	4457104		Shield, Heat Top				$ 33.62
10	WP9759225		Glass, Inner Door   (Replaces: 9759225)			Immediately	$ 174.78
11	9759230		Bracket, Central				$ 36.30
12	9763497		Bracket, Handle (right)		Appelez-nous	-
12	9763496		Bracket, Handle (left)		Appelez-nous	-
13	8304603BL		Badge (black)				$ 51.41
13	8304603SS		Badge (stainless)				$ 51.11
13	8304603WH		Badge (white)				$ 51.41
14	W10155557		Assembly, Door Kit (stainless)				$ 481.06
14	W10131889		Assembly, Door Kit (white)				$ 382.56
14	W10131888		Assembly, Door Kit (black)				$ 345.33
15	8303774BL		Handle, Door (black)		Appelez-nous	-
15	8303774WH		Handle, Door (white)		Appelez-nous	-
15	8303774SS		Handle, Door (stainless)		Appelez-nous	-
16	WPW10132940		Screw   (Replaces: 3196184)				$ 8.50
19	4448520		Bumper, Door				$ 19.07

    View Diagram in Separate Window       Print Part List
