SELECT A DIAGRAM
01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts

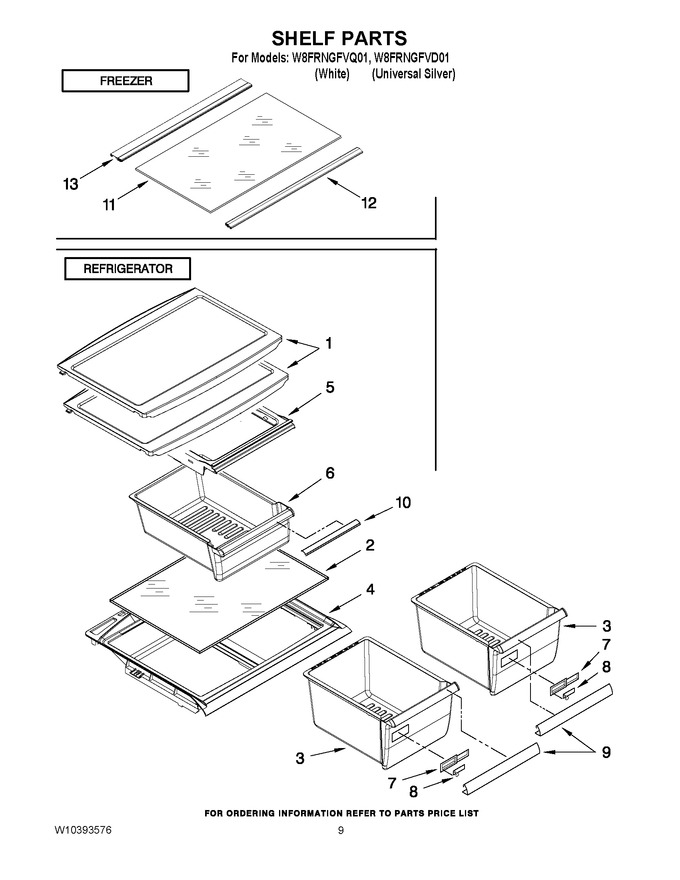

05 - Shelf Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10837901 | Shelf (Replaces: 2325502) |
|
$ 228.25 | |||||
| 2 | WP2262441 | Glass Cover (Replaces: 2325512) |
|
Immediately | $ 199.65 | ||||
| 3 | WP2256704 | Crisper Pan (Replaces: 2256704) |
|
Immediately | $ 127.50 | ||||
| 4 | WP2222031 | Cover, Crisper (Replaces: 2222031) |
|
Immediately | $ 223.07 | ||||
| 5 | WP2256601 | Holder, Meat Pan (Replaces: 2256601) |
|
$ 154.47 | |||||
| 6 | WP2261934 | Meat Pan (Replaces: 2261934) |
|
Immediately | $ 129.59 | ||||
| 7 | W11819839 | Body, Humidity Control (Replaces: 2212446) |
|
$ 13.55 | |||||
| 8 | WP2176222 | Slide, Humidity Control (Replaces: 2176222) |
|
$ 27.35 | |||||
| 9 | 2325514 | Trim, Crisper Pan |
|
- | |||||
| 10 | 2325516 | Trim, Meat Pan |
|
- | |||||
| 11 | W10283871 | Glass Shelf |
|
$ 88.25 | |||||
| 12 | WPW10283860 | Trim, Shelf (front) (Replaces: W10272377) |
|
$ 240.60 | |||||
| 13 | WPW10283860 | Trim, Shelf (rear) (Replaces: W10272381) |
|
$ 240.60 |
