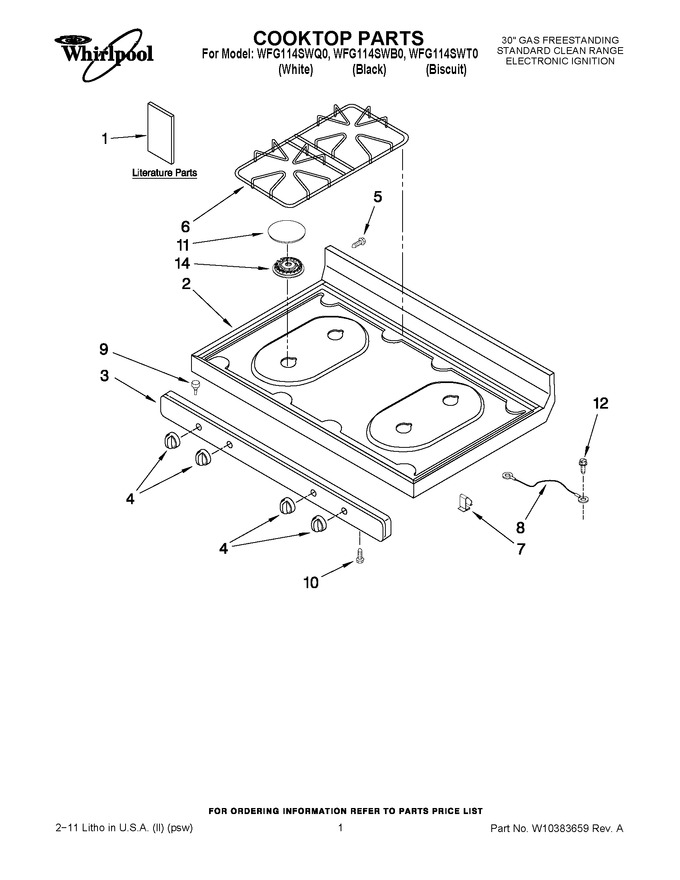

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10032050		Instruct, Install (english (template))		Appelez-nous	-
1	W10203462		Guide, Use & Care		Appelez-nous	-
1	98007130		Safer Cooking Tips		Appelez-nous	-
1	W10142327		Tech Sheet		Appelez-nous	-
2	98017619B		Cooktop (black)		Appelez-nous	-
2	WP98017619W		Cooktop (white)   (Replaces: 98017619W)				$ 311.16
2	98017619T		Cooktop (biscuit)		Appelez-nous	-
3	W10205696		Panel, Manifold (white)		Appelez-nous	-
3	W10205699		Panel, Manifold (biscuit)		Appelez-nous	-
3	W10205698		Panel, Manifold (black)		Appelez-nous	-
4	WP98008208		Knob, Burner (biscuit)   (Replaces: 98008208)				$ 18.77
4	WP98006102		Knob, Burner (white)   (Replaces: 98006102)				$ 17.53
4	WP98006100		Knob, Burner (black)   (Replaces: 98006100)				$ 18.09
5	WP98007225		Screw   (Replaces: 98007225)				$ 6.26
6	W10333861A		Kit, Grate (black)   (Replaces: W10335352)		Appelez-nous	-
6	W10333861A		Kit, Grate (wetstone)   (Replaces: W10333861)		Appelez-nous	-
7	W11229684		Clip, Cooktop   (Replaces: 98004722)				$ 10.67
8	3184020		Wire, Ground   (Replaces: 6610473)				$ 74.50
9	W10831827		Bumper, Cooktop   (Replaces: 98013389)		Appelez-nous	-
10	W11233072		Screw   (Replaces: 98005000)			Immediately	$ 12.62
11	WP98017461		Kit, Grate (grey)   (Replaces: 98017465)				$ 60.75
11	WP98017461		Cap, Burner (black)   (Replaces: 98017461)				$ 60.75
12	W10850756		Screw   (Replaces: 8534079)				$ 6.98
14	WPW10243396		Burner, Top   (Replaces: W10243396)				$ 81.38
