01 - Cover Sheet

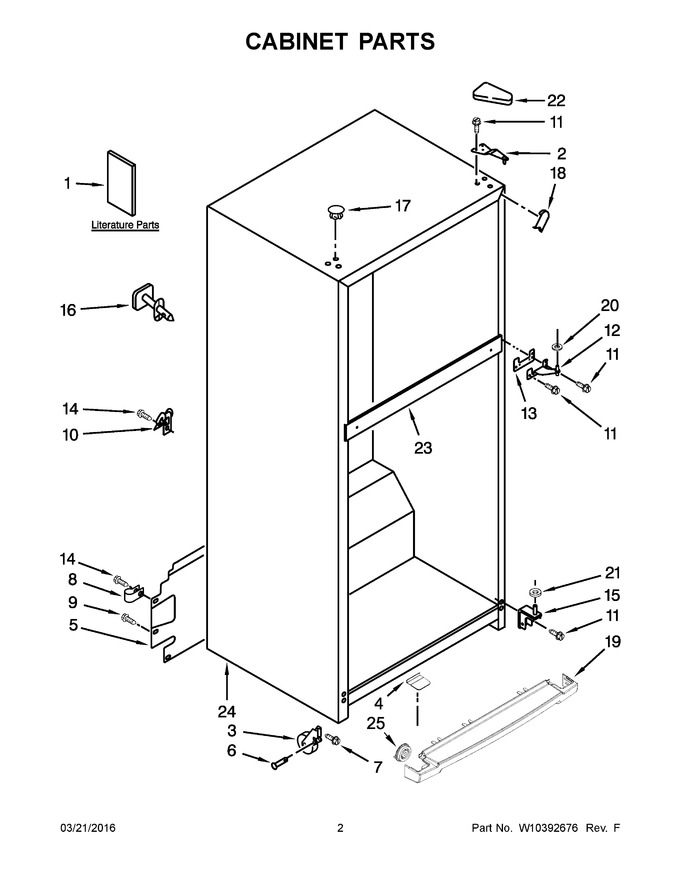

02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Freezer Door Parts
06 - Refrigerator Door Parts
07 - Unit Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10404596 | Service And Wiring Sheet |
|
- | |||||
| 2 | WPW10300065 | Hinge (top) (Replaces: W10300069) |
|
$ 11.95 | |||||
| 3 | W10849386 | Assembly, Roller (Replaces: W10327136) |
|
$ 98.36 | |||||
| 4 | W10381059 | Endcap, Grille (white) |
|
$ 75.06 | |||||
| 5 | W10636716 | Cover, Unit (Replaces: W10384413) |
|
$ 90.23 | |||||
| 6 | W11594405 | Axle, Rivet (Replaces: 2221797) |
|
Immediately | $ 16.39 | ||||
| 7 | W10850698 | Screw (Replaces: 3400517) |
|
$ 10.69 | |||||
| 8 | W10861184 | Clamp, Tube (Replaces: W10329003) |
|
$ 56.48 | |||||
| 9 | WP489427 | Screw (Replaces: 489427) |
|
$ 6.72 | |||||
| 10 | 549193 | Clamp, Power Cord |
|
$ 12.05 | |||||
| 11 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 12 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 78.88 | ||||
| 13 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 9.59 | |||||
| 14 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.01 | ||||
| 15 | WP2254473 | Hinge, Bottom (Replaces: 2254473) |
|
Immediately | $ 7.62 | ||||
| 16 | N/P | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 17 | WP2151652 | Hole Plug (white) (Replaces: 2201012) |
|
$ 19.60 | |||||
| 18 | WPW10283959 | Corner Filler (white) (Replaces: W10283959) |
|
$ 7.04 | |||||
| 19 | WPW10300127 | Grille (white) (Replaces: W10300127) |
|
$ 138.42 | |||||
| 20 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 9.79 | ||||
| 21 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 22 | W10331654 | Cover, Hinge (left Hand (white)) |
|
- | |||||
| 23 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 24 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 25 | W10331226 | Drum, Toe Grille |
|
$ 40.64 | |||||
| 17A | WP2183998 | Hole Plug (black) (Replaces: 2183998) |
|
$ 16.29 | |||||
| 17B | WPW10520307 | Hole Plug (grey) (Replaces: 2254506) |
|
Immediately | $ 6.47 | ||||
| 18A | W11252732 | Corner Filler (black) (Replaces: W10283960) |
|
$ 11.21 | |||||
| 18B | W10851579 | Corner Filler (grey) (Replaces: W10283961) |
|
Immediately | $ 6.47 | ||||
| 19A | WPW10353933 | Grille (black) (Replaces: W10353933) |
|
$ 139.55 | |||||
| 19B | WPW10353935 | Grille (grey) (Replaces: W10353935) |
|
Immediately | $ 92.99 | ||||
| 1A | W10551713 | Use And Care Guide |
|
- | |||||
| 1B | W10417318 | Energy Label |
|
- | |||||
| 22A | W10331560A | Cover, Hinge (right Hand (white)) (Replaces: W10331560) |
|
$ 11.52 | |||||
| 22B | W10353948A | Cover, Hinge (left Hand (black)) (Replaces: W10353948) |
|
$ 12.97 | |||||
| 22C | W10353945A | Cover, Hinge (right Hand (black)) (Replaces: W10353945) |
|
$ 12.97 | |||||
| 22D | W10353950A | Cover, Hinge (left Hand (grey)) (Replaces: W10353950) |
|
$ 20.90 | |||||
| 22E | W10353947A | Cover, Hinge (right Hand (grey)) (Replaces: W10353947) |
|
$ 12.24 | |||||
| 4A | W10381060 | Endcap, Grille (black) |
|
$ 36.12 | |||||
| 4B | W10381064 | Endcap, Grille (grey) |
|
$ 70.38 |
