Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 25-7649 Screw E Appelez-nous -
1 25-7702 Speedclip, End Cap To Ctrl Pnl E Appelez-nous -
1 35-2173 Control Panel E Appelez-nous -
2 35-2487 Cap, End (rt) E Appelez-nous -
2 35-2488 Cap, End (lt) E Appelez-nous -
3 WP33002917 Screw   (Replaces: 25-7435) E In-Stock Immediately $ 6.90

4 53-0278 Trim, End Cap (lt) E Appelez-nous -
4 53-0277 Trim, End Cap (rt) E Appelez-nous -
5 25-7760 Screw E Appelez-nous -
6 34-9487 Plate, Reinforcement E Appelez-nous -
6 25-7697 Screw E Appelez-nous -
6 25-7851 Speedclip, End Cap To Top E Appelez-nous -
7 25-7702 Speedclip, End Cap To Ctrl Pnl E Appelez-nous -
8 WP90767 Screw   (Replaces: 25-3092) E In-Stock Immediately $ 7.04

9 53-1677 Control Shield E Appelez-nous -
10 WP12990527 Screw, Sems   (Replaces: 25-3457) E In-Stock Immediately $ 7.15

10 25-7583 Plastic Nut E Appelez-nous -
10 WP90767 Screw   (Replaces: 25-3092) E In-Stock Immediately $ 7.04

10 35-2688 Shield, Control Panel (rear) E Appelez-nous -
11 35-2326 Timer E Appelez-nous -
12 25-0205 Screw E Appelez-nous -
13 35-2255 Skirt & Ring Assy E Appelez-nous -
14 35-2486 Timer Knob E Appelez-nous -
15 35-2197 Switch E Appelez-nous -
16 33-6620 Bracket E Appelez-nous -
16 WP90767 Screw   (Replaces: 25-3092) E In-Stock Immediately $ 7.04

17 33-8540 Switch Pad E Appelez-nous -
18 WP90767 Screw   (Replaces: 25-3092) E In-Stock Immediately $ 7.04

18 WP21001554 Pressure Switch   (Replaces: 35-2145) E Special Order $ 143.59

19 35-2185 Knob, Selector (blk) E Appelez-nous -
20 35-2588 Pushbutton - Black E Appelez-nous -
20 35-2649 Manual, Use & Care E Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

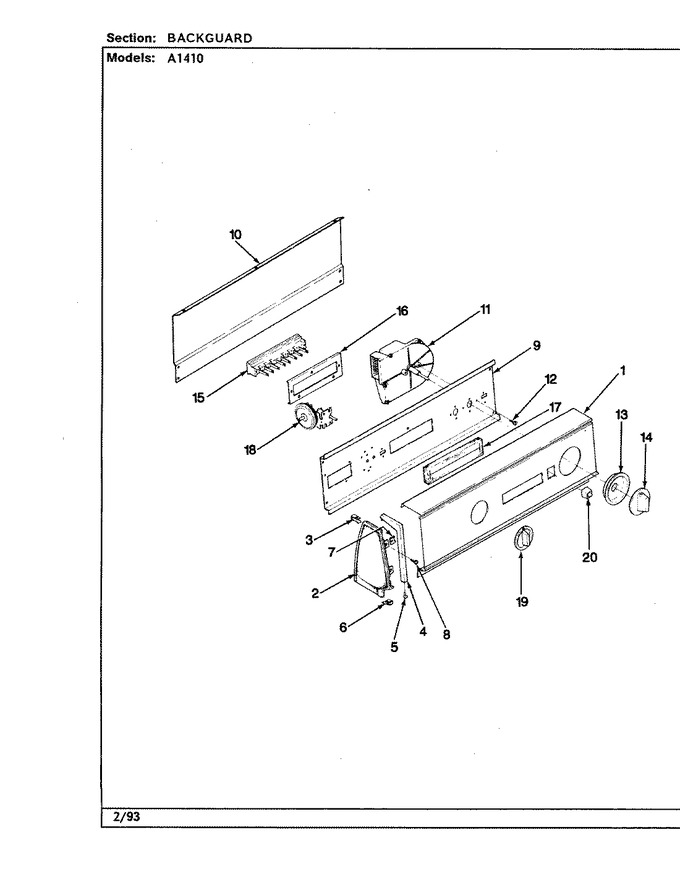

Diagram for A1410
