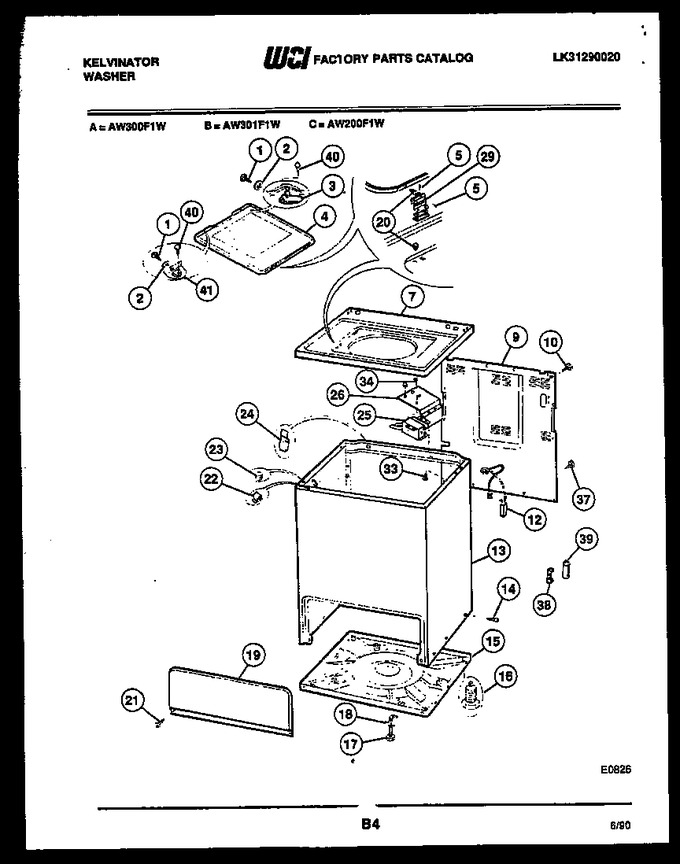

02 - Cabinet Parts


03 - Console And Control Parts


04 - Pump, Water Valve, Water Inlet


05 - Tub Detail


06 - Motor And Idler Arm Clutch


07 - Transmission Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08002407		Screw (3)		Appelez-nous	-
2	08002408		Washer-nylon (4)		Appelez-nous	-
3	3018962		Striker		Appelez-nous	-
4	08950203		Lid (white)		Appelez-nous	-
5	08027483		Screw (8)		Appelez-nous	-
7	3019080		Top Panel-white		Appelez-nous	-
9	08011286		Rear Panel		Appelez-nous	-
10	3015671		Screw (16)		Appelez-nous	-
12	08015515		Service Cord		Appelez-nous	-
13	08015512		Cabinet (white)		Appelez-nous	-
14	08001613		Screw (6)		Appelez-nous	-
15	08011290		Base		Appelez-nous	-
16	3937004		Leveling Leg (4)		Appelez-nous	-
17	08027679		Shipping Screw		Appelez-nous	-
18	3161202		Shipping Block		Appelez-nous	-
19	08015494		Access Panel-white		Appelez-nous	-
20	08010830		Screw-grommet (8)		Appelez-nous	-
21	08001578		Screw (4)		Appelez-nous	-
22	08001597		Spring-clip (2)		Appelez-nous	-
23	3004092		Bumper-cabinet (4)		Appelez-nous	-
24	08002384		Hinge (2)		Appelez-nous	-
25	3017110		Lid Lock Assy.		Appelez-nous	-
26	3018963		Bracket		Appelez-nous	-
29	08002412		Hinge (2)		Appelez-nous	-
33	08002412		Rivet (2)		Appelez-nous	-
34	3018964		Sems Screw (2)		Appelez-nous	-
38	08014902		Bracket - Capacitor		Appelez-nous	-
39	08014903		Capacitor		Appelez-nous	-
40	08015520		Bumper (2)		Appelez-nous	-
41	08015519		Lid-bracket		Appelez-nous	-
*16022	3004791		Bracket-cabinet		Appelez-nous	-
12A	5303209428		Bushing Service Cord (non-illustrated)				$ 17.01
24A	08057419		Screw-hinge (2) (non-illustrated)		Appelez-nous	-
29A	3201647		Shim-hinge (2) (non-illustrated)		Appelez-nous	-
