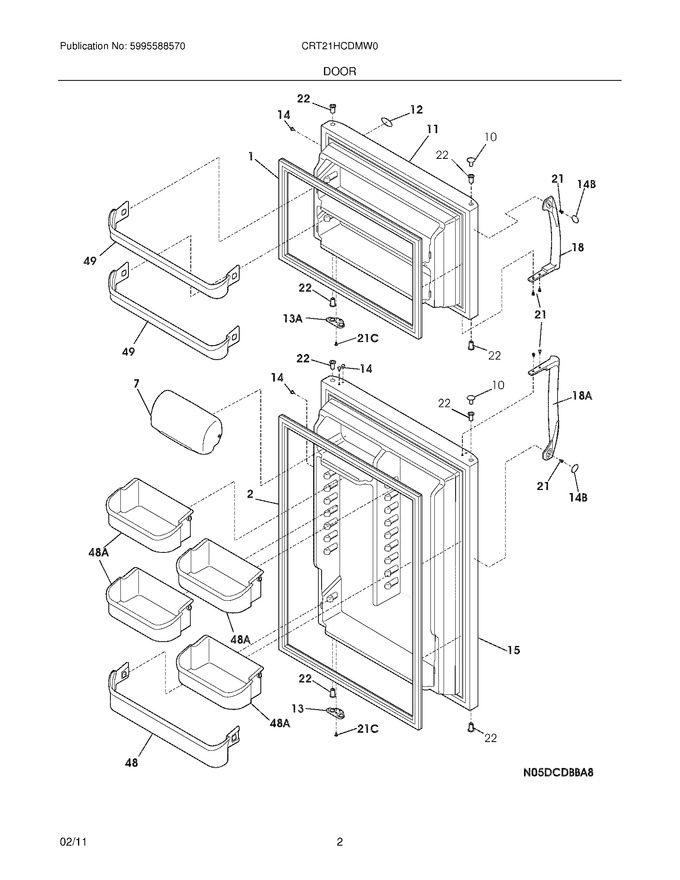

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	240338313		Door,dairy ,clear   (Replaces: 240338303)			Immediately	$ 80.80
10	240381301		Plug-button,white ,hinge Brg Hole ,(2)			Immediately	$ 18.95
11	241798402		Door-frzr,white ,complete Assy				$ 385.67
12	242115801		Nameplate		Appelez-nous	-
13	240312421		Door Stop,white ,ref   (Replaces: 240312403)				$ 15.17
14	240494001		Plug-button,white			Immediately	$ 18.20
15	241798514		Door-refr,white ,complete Assy		Appelez-nous	-
18	240339201		Handle-door,white Refr-lh/frzr-rh				$ 81.85
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 19.23
22	5304507146		Bearing-hinge,natural Color   (Replaces: 240527101)			Immediately	$ 7.59
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 52.37
49	240495804		Bin-door,pseudo ,frzr			Immediately	$ 43.29
13A	240312414		Door Stop,white ,frzr				$ 19.13
14B	240383601		Plug-button,white ,door Handle				$ 8.77
18A	5304492832		Handle-door,white Refr-rh/frzr-lh   (Replaces: 240339206)				$ 105.61
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
48A	240338201		Bin-door,gallon ,white			Immediately	$ 69.35
F1	241872505		Gasket-frzr Door,white ,magnetic				$ 162.93
F2	242193213		Gasket,refr Door Seal ,white ,magnetic   (Replaces: 241872513)			Immediately	$ 190.22
