SELECT A DIAGRAM

01 - Cover


03 - Freezer Door

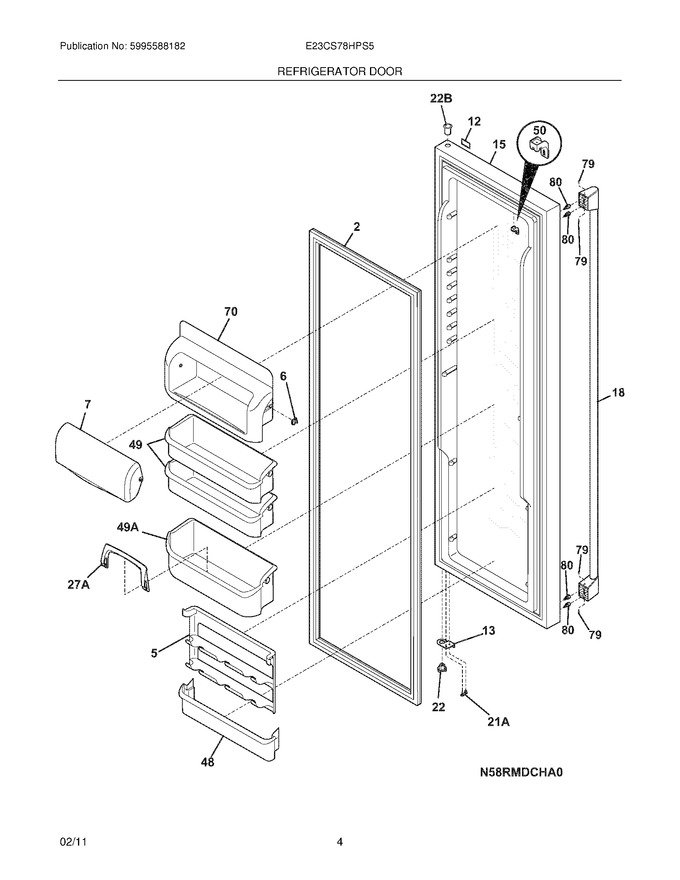

05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


20 - Wiring Schematic


21 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241516102		Rack-can				$ 101.54
6	241515901		Lug-dairy Compartment				$ 42.47
7	241515606		Door-dairy   (Replaces: 241515601)				$ 40.96
12	241603101		Label,nameplate ,elux/icon				$ 80.96
13	240581905		Door Stop,black ,ref				$ 60.25
15	241837221		Door-refr,stainless ,complete Assy				$ 589.83
18	241637921		Handle Assembly,stainless ,w/endcaps		Appelez-nous	-
22	242015302		Bearing-hinge(ref),black ,closer				$ 10.62
48	241511701		Bin-door,pseudo ,bottom   (Replaces: 241808209)			Immediately	$ 67.21
49	241505301		Bin-door,2-liter   (Replaces: 241808215)			Immediately	$ 76.40
50	241508401		Cover-magnet				$ 88.93
70	241515801		Compartment-dairy,removable				$ 177.89
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
22B	240328404		Bearing-hinge,black ,upper				$ 22.87
27A	240396102		Retainer,tall Bottle				$ 19.13
49A	241505501		Bin-door,gallon   (Replaces: 241808212)			Immediately	$ 99.03
F2	241510201		Gasket-refr Door,white ,magnetic			Immediately	$ 222.14
NI	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
NI	241601001		Wrench,allen		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
