SELECT A DIAGRAM

01 - Cooktop Parts


02 - Backguard Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Oven & Broiler Parts


06 - Door Parts


07 - Optional Parts (not Included)

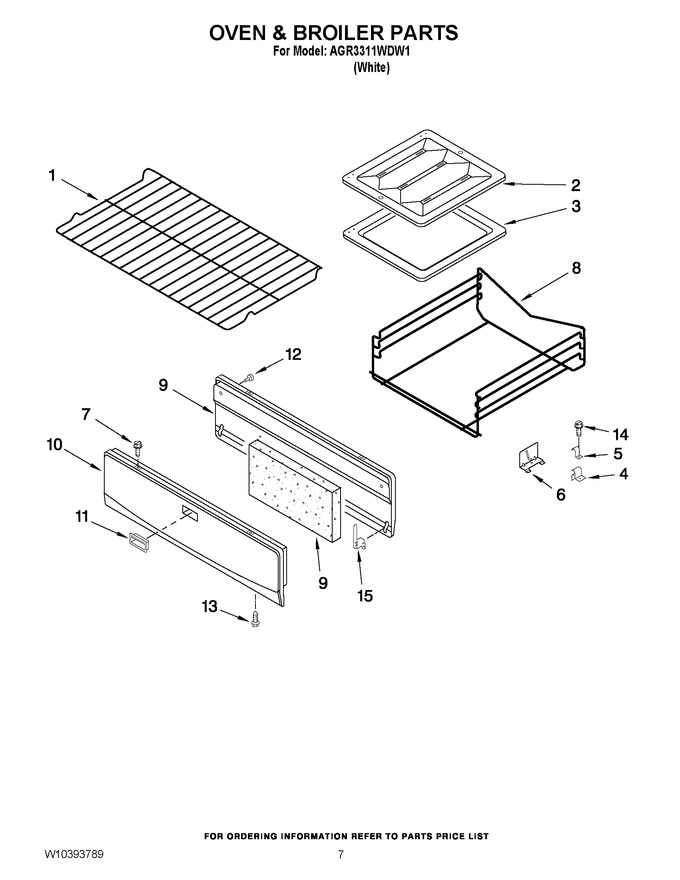

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98014136		Rack, Oven		Appelez-nous	-
2	WP98003480		Grill, Broiler   (Replaces: 98003480)				$ 89.69
3	WP98016005		Pan, Broiler   (Replaces: 98016005)				$ 77.97
4	98004715		Guide, Rack		Appelez-nous	-
5	98008341		Cover, Guide		Appelez-nous	-
6	98004761		Bracket, Rack		Appelez-nous	-
7	3196166		Screw   (Replaces: 98006727)				$ 6.31
8	98016570		Rack, Broiler		Appelez-nous	-
9	W10137230		Insulation, Door		Appelez-nous	-
10	98009342		Panel, Door		Appelez-nous	-
11	WP3405184		Handle, Brlr Door   (Replaces: 98008486)				$ 68.41
12	98004052		Bumper, Door		Appelez-nous	-
13	WP3400805		Screw   (Replaces: 98004219)				$ 6.47
14	W10837731		Screw   (Replaces: 98006633)				$ 7.07
15	W10201341		Hinge, Brlr Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
