SELECT A DIAGRAM

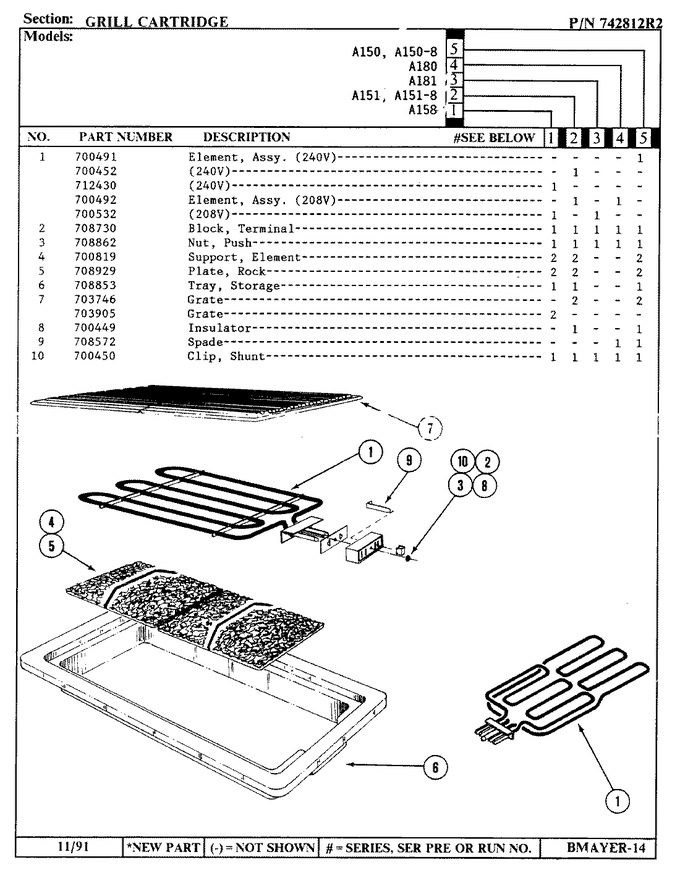

01 - Grill Cartridge
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 700492 | Grill Element Assembly |
|
- | |||||
| 1 | WP5700M426-60 | Element Complete, 240v (Replaces: Y712430) |
|
$ 382.26 | |||||
| 1 | Y700532 | Energy Saver 208v |
|
- | |||||
| 1 | WP5700M426-60 | Element, Grill (Replaces: Y700452) |
|
$ 382.26 | |||||
| 2 | WPY708730 | Block, Terminal (Replaces: Y708730) |
|
Immediately | $ 87.44 | ||||
| 3 | Y708862 | Nut, Speed |
|
$ 13.08 | |||||
| 4 | 700819 | Support, Rock Plate |
|
$ 71.81 | |||||
| 5 | 708929 | Plate, Rock |
|
- | |||||
| 6 | 708853 | Tray, Storage |
|
- | |||||
| 7 | Y703746 | Grates, Grill (2) |
|
- | |||||
| 7 | 703905 | Grate, Grill |
|
- | |||||
| 8 | Y700449 | Insulator |
|
- | |||||
| 9 | Y708572 | Spade, Contact |
|
Immediately | $ 11.34 | ||||
| 10 | Y700450 | Clip, Shunt |
|
$ 9.51 |
