SELECT A DIAGRAM

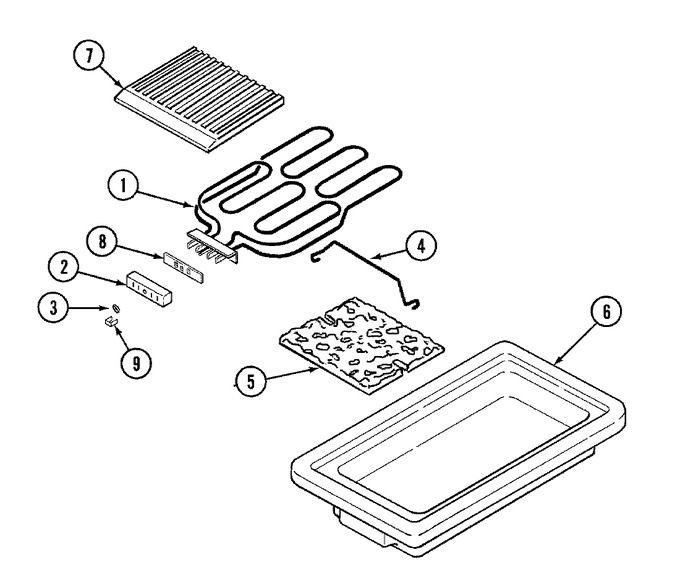

01 - Grill Cartridge
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y700457 | Element,grill Assembly | 1 |
|
- | ||||
| 2 | WPY708730 | Block, Terminal (Replaces: Y708730) | 1 |
|
Immediately | $ 87.44 | |||
| 3 | Y708862 | Nut, Speed | 1 |
|
$ 13.08 | ||||
| 4 | 700819 | Support, Rock Plate | 1 |
|
$ 71.81 | ||||
| 5 | 708929 | Plate, Rock | 1 |
|
- | ||||
| 6 | 708853 | Tray, Storage | 1 |
|
- | ||||
| 7 | Y04100367 | Grate, Grill (excalibur) | 1 |
|
- | ||||
| 8 | Y700449 | Insulator | 1 |
|
- | ||||
| 9 | Y700450 | Clip, Shunt | 1 |
|
$ 9.51 |
