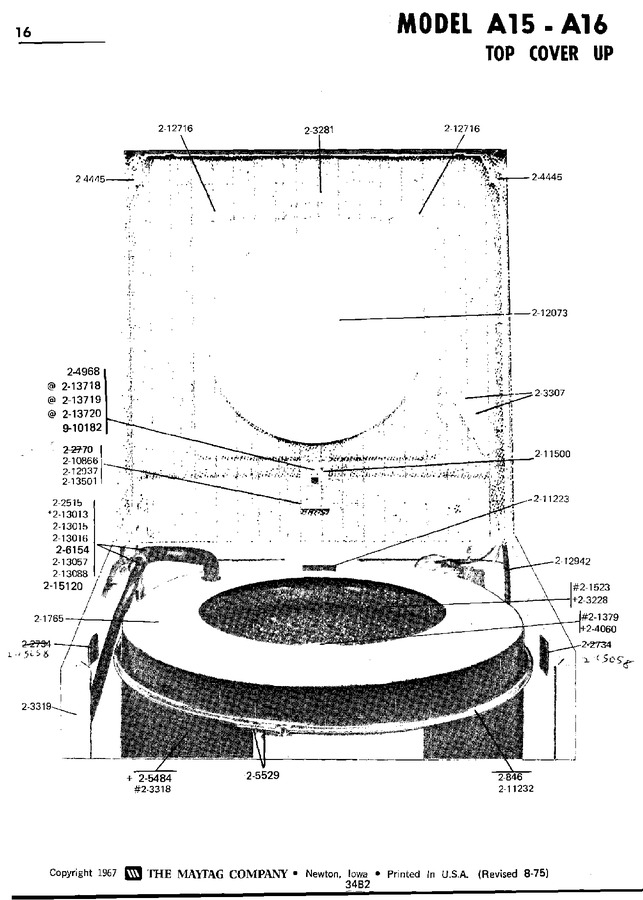

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Screw (no.6-32 X 3/8) | 00 |
|
- | ||||
| 002 | 201379 | Agitator - Black | 00 |
|
- | ||||
| 003 | NLA | Inner Tub | 00 |
|
- | ||||
| 004 | 201765 | Tub Cover | 00 |
|
- | ||||
| 005 | WP596669 | Hose Clamp - 1-1/16 Inch (Replaces: 202515) | 00 |
|
Immediately | $ 7.56 | |||
| 006 | Y202734 | Bumper | 00 |
|
- | ||||
| 007 | NLA | Top Cover (wht) | 00 |
|
- | ||||
| 008 | NLA | Mtg. Strap | 00 |
|
- | ||||
| 009 | 203318 | Outer Tub | 00 |
|
- | ||||
| 010 | NLA | Cabinet (wht) | 00 |
|
- | ||||
| 011 | 204445 | Screw & Fastener Asy. | 00 |
|
- | ||||
| 012 | 204968 | Plunger & Bracket Assembly--w | 00 |
|
$ 26.05 | ||||
| 013 | W10820036 | Switch, Lid (w/o Tub Light) (Replaces: 205415) | 00 |
|
Immediately | $ 27.45 | |||
| 014 | 205529 | Nut & Bolt Kit, Tub Clam | 00 |
|
$ 6.58 | ||||
| 015 | 206154 | Injector Tube W/seal | 00 |
|
$ 50.55 | ||||
| 016 | 210866 | Twin Speed Nut | 00 |
|
- | ||||
| 017 | 211223 | Unbalance Bumper | 00 |
|
- | ||||
| 018 | WP211232 | Seal (Replaces: 211232) | 00 |
|
$ 62.96 | ||||
| 019 | 211500 | Washer, Bracket | 00 |
|
- | ||||
| 020 | WP211726 | Hinge, Ball (Replaces: 211726) | 00 |
|
Immediately | $ 7.18 | |||
| 021 | 212073 | Lid (wht) | 00 |
|
- | ||||
| 022 | WP212716 | Bumper, Lid (Replaces: 212716) | 00 |
|
Immediately | $ 7.88 | |||
| 023 | 212937 | Moisture Barrier | 00 |
|
- | ||||
| 024 | WP22001619 | Air Dome & Tube (Replaces: 212942) | 00 |
|
$ 75.73 | ||||
| 025 | WP213013 | Hose, Injector (Replaces: 213013) | 00 |
|
Immediately | $ 44.40 | |||
| 026 | WP213015 | Injector Nozzle (Replaces: 213015) | 00 |
|
Immediately | $ 7.29 | |||
| 027 | WP216201 | Valve, Injector (Replaces: 213016) | 00 |
|
Immediately | $ 18.88 | |||
| 028 | WP22213057 | Sleeve, Injector (Replaces: 213057) | 00 |
|
$ 8.06 | ||||
| 029 | 213081 | Dispenser Cap-black | 00 |
|
- | ||||
| 030 | 213088 | Injector Hose | 00 |
|
- | ||||
| 031 | 213501 | Screw, No.6-20 X 1-1/8 Inch | 00 |
|
$ 12.03 | ||||
| 032 | 213718 | Lid Switch Plunger | 00 |
|
$ 12.10 | ||||
| 033 | 213719 | Unbalance Lever | 00 |
|
- | ||||
| 034 | WP213720 | Spring (Replaces: 213720) | 00 |
|
$ 7.63 | ||||
| 035 | 215120 | Seal, Injector Tube | 00 |
|
$ 5.83 | ||||
| 036 | Y310632 | Screw | 00 |
|
- | ||||
| 037 | NLA | External/internal Lock Washer | 00 |
|
- | ||||
| 038 | W10756178 | Screw (Replaces: 910182) | 00 |
|
$ 5.39 |
