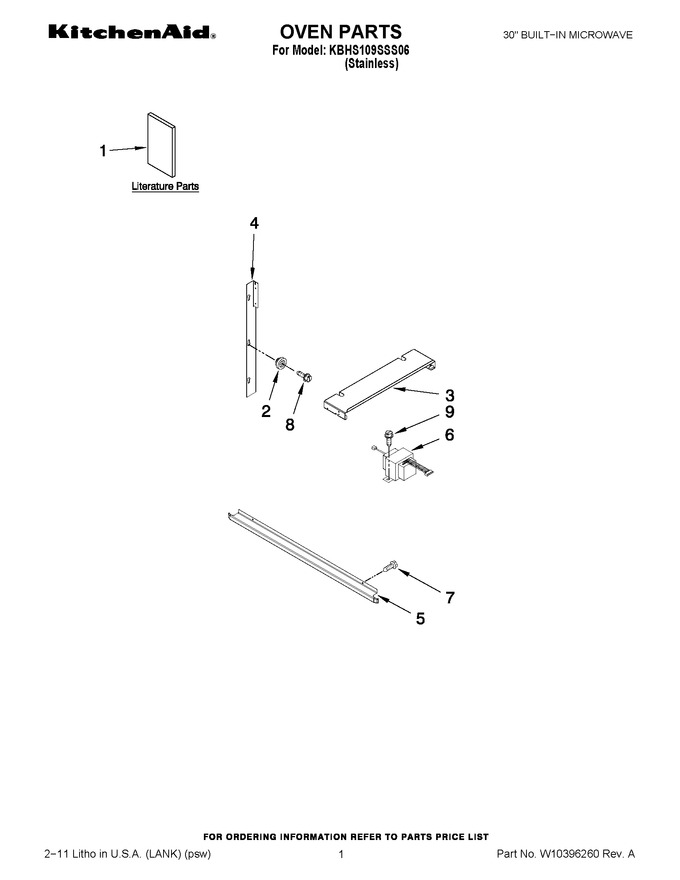

01 - Oven Parts
02 - Control Panel Parts
03 - Microwave Door Parts
04 - Cabinet And Stirrer Parts
05 - Internal Microwave Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10355490 | Installation Instructions (english) |
|
- | |||||
| 1 | W10075750 | Installation Instructions (bi-lingual) |
|
- | |||||
| 1 | W10162181 | Use & Care Guide |
|
- | |||||
| 1 | W10220960 | Tech Sheet (english) |
|
- | |||||
| 1 | W10220961 | Tech Sheet (french) |
|
- | |||||
| 1 | 8304375 | Easy Set Guide |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 2 | WP4448444 | Grommet, Mounting Rail (Replaces: 4448444) |
|
$ 6.73 | |||||
| 3 | W10318623 | Support, Microwave Module |
|
$ 36.78 | |||||
| 4 | W10318578 | Rail, Mounting Side (right) |
|
- | |||||
| 4 | W10318579 | Rail, Mounting Side (left) |
|
- | |||||
| 5 | W10216217 | Trim, Bottom |
|
$ 39.73 | |||||
| 6 | 9760213 | Transformer, Microwave Ui |
|
$ 212.98 | |||||
| 7 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 6.98 | ||||
| 8 | W10142289 | Screw (Replaces: 3400893) |
|
$ 8.24 | |||||
| 9 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 |
