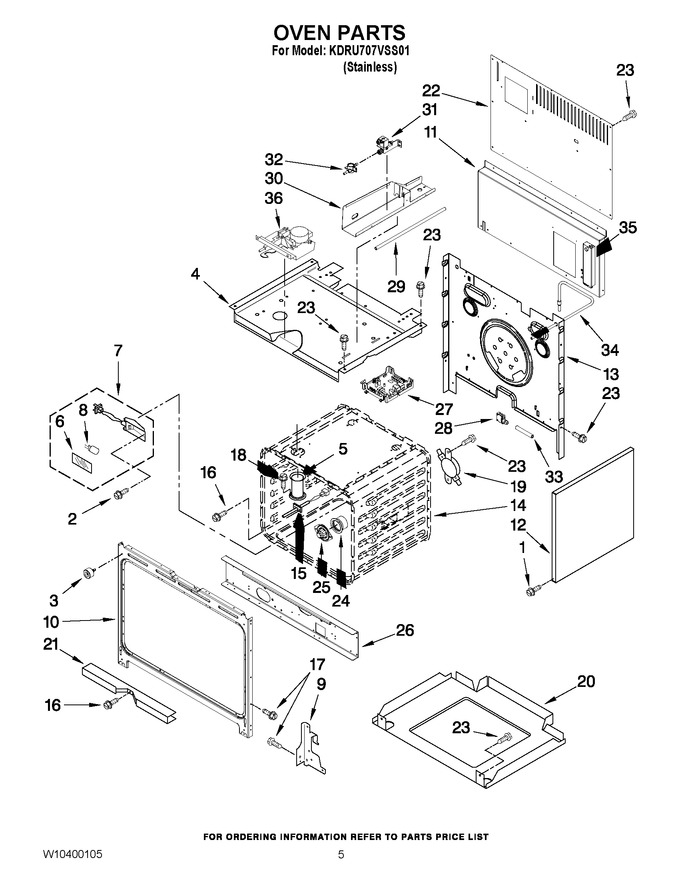

03 - Oven Parts


04 - Chassis Parts


05 - Top Venting Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 6.47
2	4449748		Screw				$ 12.20
3	W10105790		Assembly, Bumper				$ 6.35
4	W10267897		Top, Chassis		Appelez-nous	-
5	W10288061		Tube, Vent				$ 99.38
6	W10169756		Lens, Light				$ 36.16
7	WPW10307114		Oven Light Assy   (Replaces: W10307114)			Immediately	$ 99.44
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 42.64
9	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 107.47
9	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 103.82
10	W10160866		Frame, Front		Appelez-nous	-
11	W10145399		Panel, Back Bottom		Appelez-nous	-
12	W10269205		Side, Chassis (right)				$ 201.88
12	W10269206		Side, Chassis (left)				$ 201.67
13	W10273154		Back, Chassis		Appelez-nous	-
14	N/P		Liner, Oven (not Serviced)		Appelez-nous	-
15	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 86.25
16	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
17	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
18	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
19	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 100.66
20	W10235537		Base, Chassis		Appelez-nous	-
21	W11368870		Retainer, Gasket   (Replaces: W10157511)				$ 21.35
22	W10269207		Panel, Back Top		Appelez-nous	-
23	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
24	W10153096		Orifice, Boiler		Appelez-nous	-
25	9758597		Orifice, Boiler Slip Fit				$ 42.82
26	W10269194		Support, Channel		Appelez-nous	-
27	WPW10496836		Appliance, Manager   (Replaces: W10116188)				$ 400.46
28	W10194453		Switch, Pressure				$ 254.00
29	WPW10076930		Hose, Transfer   (Replaces: W10076930)				$ 23.82
30	W10160877		Encloseure, Steam Valve		Appelez-nous	-
31	W10111418		Valve, Solenoid				$ 151.74
32	WPW10076760		Sensor, Conductivity   (Replaces: W10076760)				$ 189.12
33	W10116067		Hose, Silicone		Appelez-nous	-
34	W10160828		Tube, Copper Steam		Appelez-nous	-
35	8186352		Assembly, Boiler   (Replaces: 9758598)				$ 296.08
36	W11029221		Latch, Motorized   (Replaces: W10195935)			Immediately	$ 280.85
NI	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 107.01
NI	W10246053		Insulation, Back		Appelez-nous	-
