Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3205898 Cover Appelez-nous -
2 5303015671 Screw (4) Appelez-nous -
3 5303271760 Timer Appelez-nous -
4 3161188 Screw Appelez-nous -
5 5303210130 Switch - Pressure Appelez-nous -
6 5303161233 Screw Appelez-nous -
7 5303210965 Switch - Temperature Appelez-nous -
8 3161259 Screw Special Order $ 6.83

9 5303015671 Screw (4) Appelez-nous -
10 3281200 Clip-ground Appelez-nous -
11 5308014350 Clip (8) Appelez-nous -
12 3205979 End Cap-lh Appelez-nous -
13 3205978 End Cap-rh Special Order $ 46.83

14 5303289526 Screw Appelez-nous -
15 5303210966 Pointer Appelez-nous -
16 5303210967 Knob - Timer Special Order $ 31.40

17 5308015435 Knob-rotary Special Order $ 44.29

18 131060600 Panel-control Appelez-nous -
19 5303285145 Bracket-control Appelez-nous -
20 131015700 Harness Appelez-nous -
21 5303281201 Pad Appelez-nous -
22 5379171000 Terminal Appelez-nous -
23 08001689 Screw Appelez-nous -
24 5303285493 Clip - Harness Appelez-nous -
25 5308015493 Spacer-timer Shaft Special Order $ 14.36

26 5300503065 Nut Special Order $ 6.09


    View Diagram in Separate Window     Print Icon   Print Part List

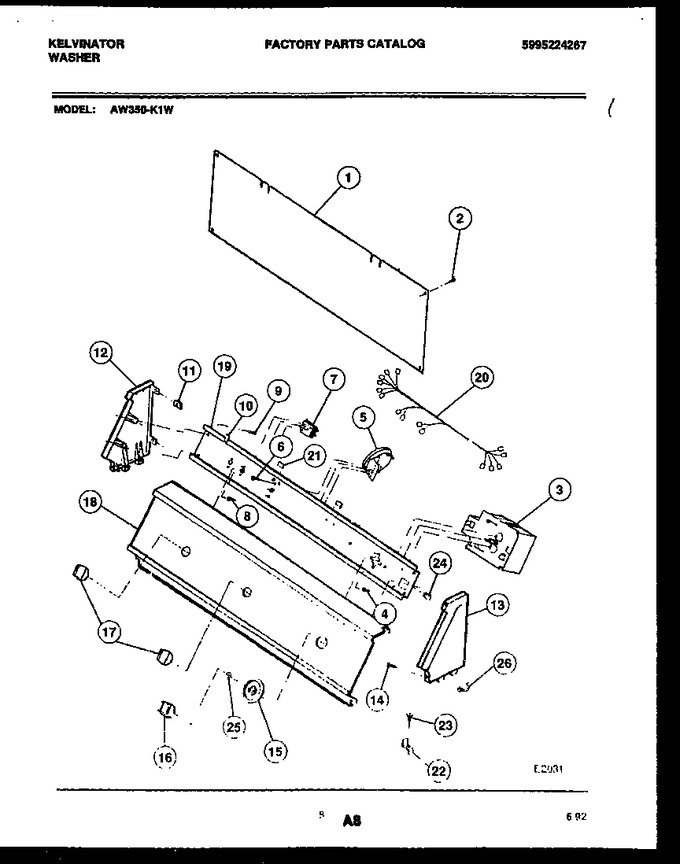

Diagram for AW350-K1D
