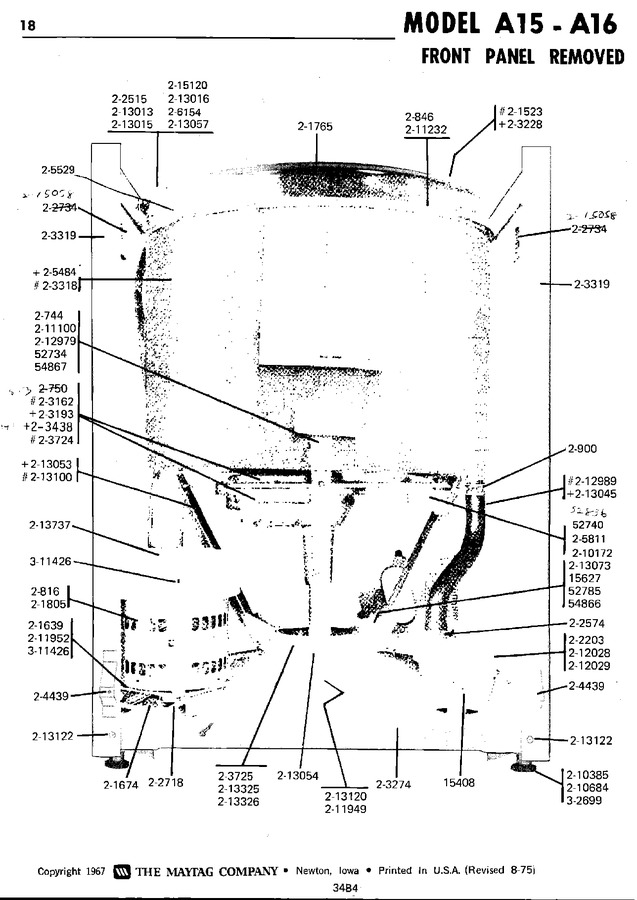

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP3390631 | Screw, Bearing Insert (Replaces: Y015408) | 00 |
|
$ 7.04 | ||||
| 002 | Y015627 | Screw, Hex Hd Cap 5/16 X 5/8 | 00 |
|
$ 8.15 | ||||
| 003 | Y052734 | Nut, Brace (tub) | 00 |
|
- | ||||
| 004 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 | ||||
| 005 | Y052785 | Nut, Brace (damper) | 00 |
|
- | ||||
| 006 | NLA | Cap Screw (3/8-16 X 1) | 00 |
|
- | ||||
| 007 | Y053241 | Set Screw, Pulley | 00 |
|
- | ||||
| 008 | Y054866 | Lock Washer | 00 |
|
- | ||||
| 009 | Y054867 | Washer, Lock | 00 |
|
- | ||||
| 010 | Y055978 | Rubber Adhesive, 2 Oz Tube | 00 |
|
$ 38.40 | ||||
| 011 | WPY055980 | Hi-temp Adhesive, 2 Oz Tube (Replaces: Y055980) | 00 |
|
Immediately | $ 28.72 | |||
| 012 | WP285655 | Hose Clamp - 1-5/8 Inch (Replaces: 200461) | 00 |
|
Immediately | $ 7.55 | |||
| 013 | W10175939 | Bolt & Gasket Assy.(short) (Replaces: 200744) | 00 |
|
$ 7.79 | ||||
| 014 | NLA | Gear Case Cover Assembly | 00 |
|
- | ||||
| 015 | 200816 | Pulley, Motor (w/set Screw) | 00 |
|
- | ||||
| 016 | 200846 | Clamp - Tub Cover | 00 |
|
$ 62.11 | ||||
| 017 | WP616099 | Clamp, Spray Arm Hose (Replaces: 200900) | 00 |
|
Immediately | $ 7.03 | |||
| 018 | NLA | Inner Tub | 00 |
|
- | ||||
| 019 | WP596669 | Hose Clamp (Replaces: 201575) | 00 |
|
Immediately | $ 7.56 | |||
| 020 | 201639 | Upper Motor Mount | 00 |
|
- | ||||
| 021 | COMM PART | Lower Motor Mount----na (Replaces: 201674) | 00 |
|
- | ||||
| 022 | 201765 | Tub Cover | 00 |
|
- | ||||
| 023 | 12002351 | Motor (one Speed) (Replaces: 201805) | 00 |
|
Immediately | $ 170.98 | |||
| 024 | 202203 | Pump As Pak | 00 |
|
- | ||||
| 025 | WP596669 | Hose Clamp - 1-1/16 Inch (Replaces: 202515) | 00 |
|
Immediately | $ 7.56 | |||
| 026 | WP3367052 | Clamp, Hose (Replaces: 202574) | 00 |
|
$ 7.49 | ||||
| 027 | NLA | Pump Pulley W/pin | 00 |
|
- | ||||
| 028 | 202718 | Tension Springs | 00 |
|
Immediately | $ 200.35 | |||
| 029 | Y202734 | Bumper | 00 |
|
- | ||||
| 030 | NLA | Gear Housing W/studs & Tube | 00 |
|
- | ||||
| 031 | NLA | Gear Housing W/studs & Tube | 00 |
|
- | ||||
| 032 | 203274 | Base W/damper Pads | 00 |
|
- | ||||
| 033 | 203318 | Outer Tub | 00 |
|
- | ||||
| 034 | NLA | Cabinet (wht) | 00 |
|
- | ||||
| 035 | 203438 | Trans & Center Assy. (lg) | 00 |
|
- | ||||
| 036 | 203724 | Power Unit W/gears | 00 |
|
- | ||||
| 037 | 1N4004 | Damper W/bolt & Clip (Replaces: 203725) | 00 |
|
- | ||||
| 038 | 204439 | Screw & Fstner Assy (ft. Pnl) | 00 |
|
$ 8.80 | ||||
| 039 | 205529 | Nut & Bolt Kit, Tub Clam | 00 |
|
$ 6.58 | ||||
| 040 | NLA | Counterweight | 00 |
|
- | ||||
| 041 | 206154 | Injector Tube W/seal | 00 |
|
$ 50.55 | ||||
| 042 | NLA | Lock Washer | 00 |
|
- | ||||
| 043 | WP210385 | Nut, Lock (Replaces: 210385) | 00 |
|
$ 6.26 | ||||
| 044 | WP210684 | Foot, Rubber (Replaces: 210684) | 00 |
|
Immediately | $ 14.09 | |||
| 045 | 211028 | Deflector,water (drive Tube) | 00 |
|
- | ||||
| 046 | NLA | Counterweight | 00 |
|
- | ||||
| 047 | 211100 | Washer, Cushion | 00 |
|
- | ||||
| 048 | WP211232 | Seal (Replaces: 211232) | 00 |
|
$ 62.96 | ||||
| 049 | 211704 | Drain Hose | 00 |
|
$ 78.91 | ||||
| 050 | WPY014874 | Screw, Hex Hd No.10 X 1/2 Inc (Replaces: 211880) | 00 |
|
$ 6.98 | ||||
| 051 | WP211949 | Nut, Eyebolt (Replaces: 211949) | 00 |
|
$ 6.88 | ||||
| 052 | Y211952 | Roller | 00 |
|
- | ||||
| 053 | NLA | Pump Housing, Poly | 00 |
|
- | ||||
| 054 | 212979 | Washer, Tub Brace | 00 |
|
$ 91.61 | ||||
| 055 | WPY212989 | Hose, Outer Tub (pump) (Replaces: Y212989) | 00 |
|
Immediately | $ 46.51 | |||
| 056 | WP213013 | Hose, Injector (Replaces: 213013) | 00 |
|
Immediately | $ 44.40 | |||
| 057 | WP213015 | Injector Nozzle (Replaces: 213015) | 00 |
|
Immediately | $ 7.29 | |||
| 058 | WP216201 | Valve, Injector (Replaces: 213016) | 00 |
|
Immediately | $ 18.88 | |||
| 059 | 213054 | Centering Spring | 00 |
|
- | ||||
| 060 | WP22213057 | Sleeve, Injector (Replaces: 213057) | 00 |
|
$ 8.06 | ||||
| 061 | 213073 | Washer, Dble. (brace) | 00 |
|
- | ||||
| 062 | 213088 | Injector Hose | 00 |
|
- | ||||
| 063 | 213100 | Brace, Tub | 00 |
|
- | ||||
| 064 | W11129403 | Eye Bolt, Center Spring (Replaces: 213120) | 00 |
|
$ 12.23 | ||||
| 065 | WP27001200 | Screw, Cabinet (front Of Base) (Replaces: 213122) | 00 |
|
$ 6.91 | ||||
| 066 | 213325 | Clip, Retainer | 00 |
|
$ 5.51 | ||||
| 067 | 213326 | Bolt, Retaining Clip | 00 |
|
- | ||||
| 068 | NLA | Wire Retaining Clip | 00 |
|
- | ||||
| 069 | 213737 | Motor Shield - Poly | 00 |
|
- | ||||
| 070 | 215120 | Seal, Injector Tube | 00 |
|
$ 5.83 | ||||
| 071 | 22003428 | Leg, Adjustable (w/nut)---s (Replaces: Y302699) | 00 |
|
Immediately | $ 14.41 | |||
| 072 | Y310632 | Screw | 00 |
|
- | ||||
| 073 | WP3400029 | Keps Nut, Motor Base (base) (Replaces: Y311426) | 00 |
|
Immediately | $ 6.98 |
