SELECT A DIAGRAM
02 - Control Panel
03 - Door Parts
04 - Drawer Parts
05 - Gas Control
06 - Body Parts
SELECT A DIAGRAM
New Model Search:

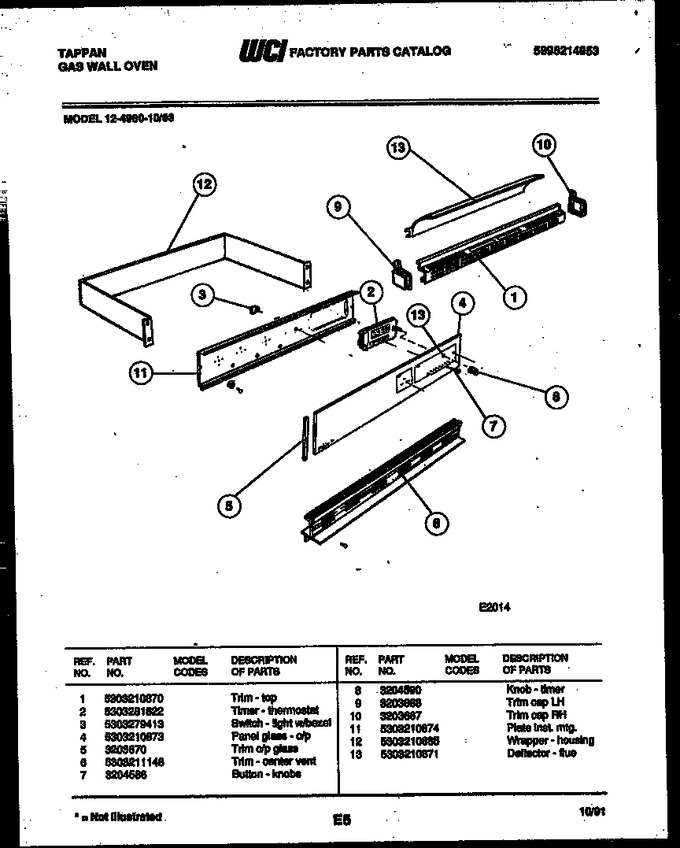

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210870 | Trim - Top |
|
- | |||||
| 2 | 5303281822 | Timer-thermostat |
|
- | |||||
| 3 | 5303279413 | Switch - Light W/bezel |
|
- | |||||
| 4 | 5303210873 | Panel Glass - C/p |
|
- | |||||
| 5 | 3203670 | Trim C/p Glass |
|
- | |||||
| 6 | 5303211148 | Trim - Center Vent |
|
- | |||||
| 7 | 3204586 | Button - Knobs |
|
- | |||||
| 8 | 3204590 | Knob - Timer |
|
- | |||||
| 9 | 3203668 | Trim Cap (lh) |
|
- | |||||
| 10 | 3203667 | Trim Cap (rh) |
|
- | |||||
| 11 | 5303210874 | Plate Inst. Mtg. |
|
- | |||||
| 12 | 5303210685 | Wrapper - Housing |
|
- | |||||
| 13 | 5303210871 | Deflector - Flue |
|
- |
