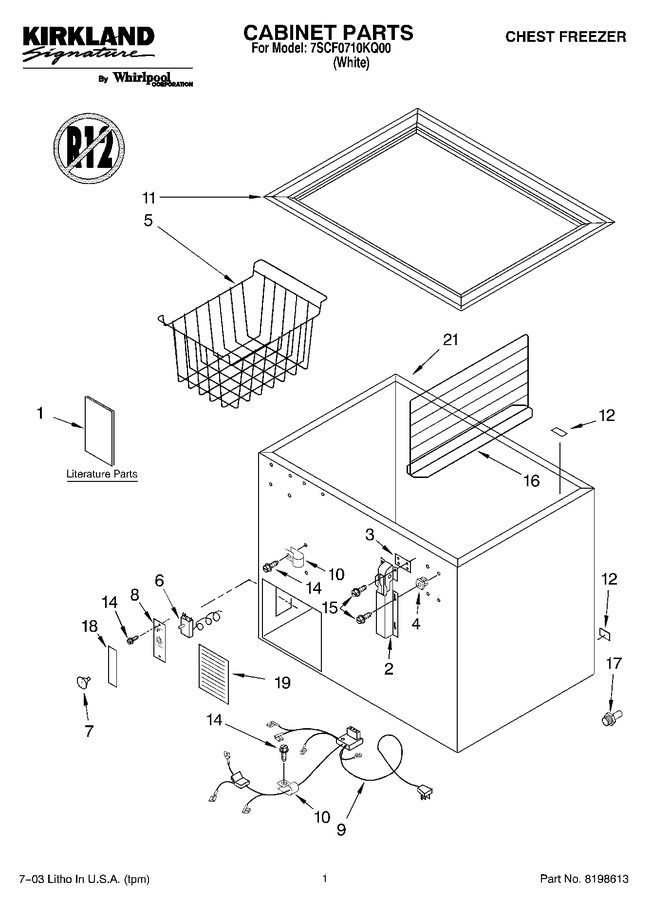

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8205013		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT8205012		Literature Parts (energy Guide)		Appelez-nous	-
2	4356723		Hinge, Assembly				$ 174.99
3	1-17548-006		Hinge Spacer   (Replaces: 4356463)				$ 18.64
4	4356321		Plastic, Grommet				$ 11.72
5	8210434A		Wire Basket   (Replaces: 4356354)				$ 77.93
6	WP4-35940-001		Thermostat   (Replaces: 4356773)				$ 148.16
7	4356769		Thermostat, Knob		Appelez-nous	-
8	W10682894		Control Box   (Replaces: 4356674)		Appelez-nous	-
9	4356733		External, Wiring Harness		Appelez-nous	-
10	488946		Clip   (Replaces: 4356643)				$ 18.41
11	4356632		Breaker Strip		Appelez-nous	-
12	4356456		Drain, Cap		Appelez-nous	-
14	3-24004-049		Screw   (Replaces: 4356583)		Appelez-nous	-
15	4356491		Screw		Appelez-nous	-
16	4356731		Divider (optional)		Appelez-nous	-
17	W11663505		Adaptor, Drain   (Replaces: 4356481)				$ 15.45
18	4356584		Insert, Control		Appelez-nous	-
19	4356622		Access Panel				$ 70.79
21	N/A		Customer Touch-up Material		Appelez-nous	-
21	4356703		Clip, Gasket (kit Of 60)				$ 43.62
21	350942		Enamel, White (13 Oz. Spray Can)				$ 80.69
21	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
21	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07

    View Diagram in Separate Window       Print Part List
