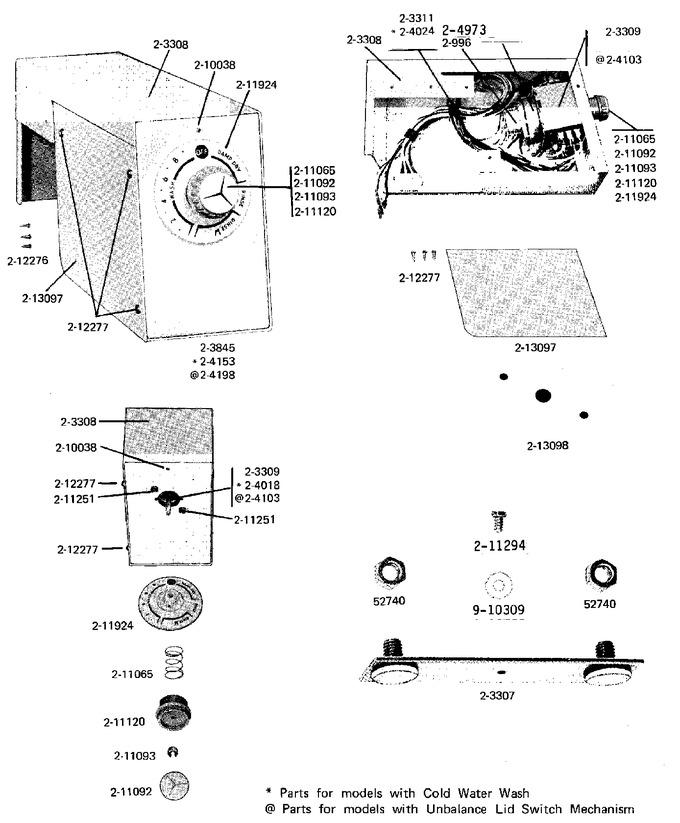

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 | ||||
| 002 | NLA | Timer Motor | 00 |
|
- | ||||
| 003 | NLA | Mtg. Strap----na | 00 |
|
- | ||||
| 004 | NLA | Outer Case (wht) | 00 |
|
- | ||||
| 005 | 203309 | Timer | 00 |
|
- | ||||
| 006 | NLA | Wire Harness | 00 |
|
- | ||||
| 007 | NLA | Harness, Commercial Box | 00 |
|
- | ||||
| 008 | NLA | Timer | 00 |
|
- | ||||
| 009 | NLA | Control Center W/gasket | 00 |
|
- | ||||
| 010 | 204973 | Timer Motor | 00 |
|
- | ||||
| 011 | NLA | Button Marker | 00 |
|
- | ||||
| 012 | 211065 | Spring, Timer Knob | 00 |
|
$ 5.70 | ||||
| 013 | NLA | Cap, Knob | 00 |
|
- | ||||
| 014 | 211093 | Retainer | 00 |
|
- | ||||
| 015 | 211120 | Timer Knob | 00 |
|
- | ||||
| 016 | 211251 | Screw | 00 |
|
- | ||||
| 017 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 018 | NLA | Timer Dial | 00 |
|
- | ||||
| 019 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 020 | WP1163283 | Screw, No.8 X 1/2 Inch (Replaces: 212277) | 00 |
|
$ 6.47 | ||||
| 021 | NLA | Access Door, Timer | 00 |
|
- | ||||
| 022 | NLA | Gasket Under Control Center | 00 |
|
- | ||||
| 023 | NLA | Instruction Decal | 00 |
|
- | ||||
| 024 | 910309 | Washer | 00 |
|
- |
