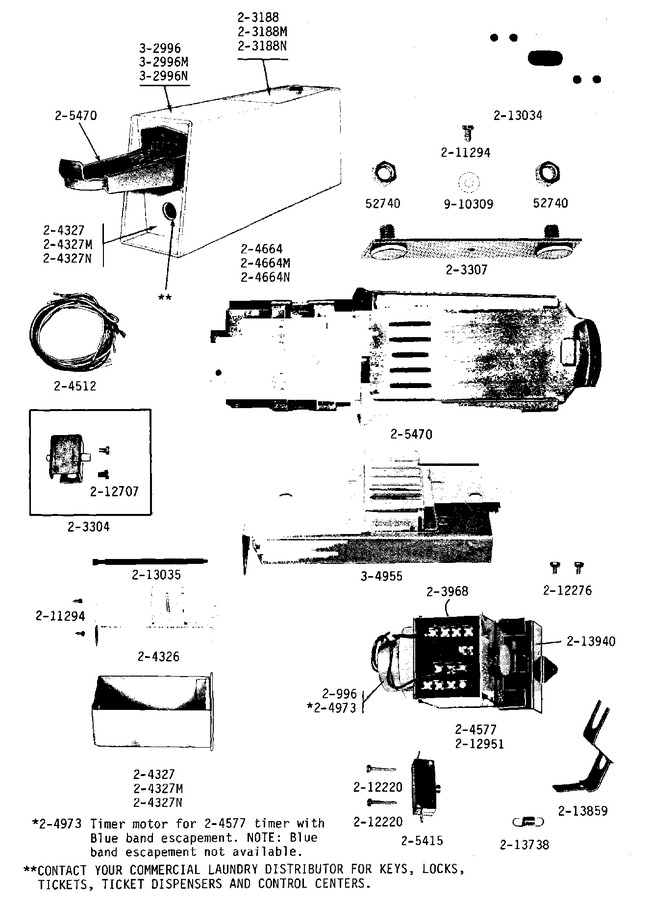

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 | ||||
| 002 | NLA | Timer Motor, A | 00 |
|
- | ||||
| 003 | 203188 | Door, Access (wht) | 00 |
|
- | ||||
| 004 | NLA | Actuator Kit-washer Slides---n | 00 |
|
- | ||||
| 005 | NLA | Mtg. Strap----na | 00 |
|
- | ||||
| 006 | NLA | Harness-switch To Timer | 00 |
|
- | ||||
| 007 | NLA | Coin Drop Assembly | 00 |
|
- | ||||
| 008 | NLA | Coin Box-white----na | 00 |
|
- | ||||
| 009 | NLA | Main Wire Harness | 00 |
|
- | ||||
| 010 | 204577CP | Timer With Knob And Pin (Replaces: 204577) | 00 |
|
- | ||||
| 011 | NLA | Control Center-white | 00 |
|
- | ||||
| 012 | 204973 | Timer Motor | 00 |
|
- | ||||
| 013 | W10820036 | Switch, Lid (w/o Tub Light) (Replaces: 205415) | 00 |
|
Immediately | $ 27.45 | |||
| 014 | NLA | Maytag Coin Slide | 00 |
|
- | ||||
| 015 | NLA | Counter Kit With Actuator | 00 |
|
- | ||||
| 016 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 017 | 212220 | Screw-hex Hd Type B No.6 X 15/16 | 00 |
|
- | ||||
| 018 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 019 | W11684507 | Screw (Replaces: 212707) | 00 |
|
$ 12.23 | ||||
| 020 | 212951 | Screw, No.6-32 X 1/4 Inch | 00 |
|
- | ||||
| 021 | NLA | Gasket Under Control Center | 00 |
|
- | ||||
| 022 | 213035 | Bolt, Locking | 00 |
|
$ 5.84 | ||||
| 023 | NLA | Spring Tension Lever Return | 00 |
|
- | ||||
| 024 | NLA | Spring Tension Lever Return | 00 |
|
- | ||||
| 025 | NLA | Lever Arm For Switch | 00 |
|
- | ||||
| 026 | NLA | Mounting Bracket For Timer | 00 |
|
- | ||||
| 027 | NLA | Outer Case-white | 00 |
|
- | ||||
| 028 | NLA | Coin Box Cover | 00 |
|
- | ||||
| 029 | 910309 | Washer | 00 |
|
- |
