SELECT A DIAGRAM

01 - Front View


02 - Rear View


03 - Cm Control Center

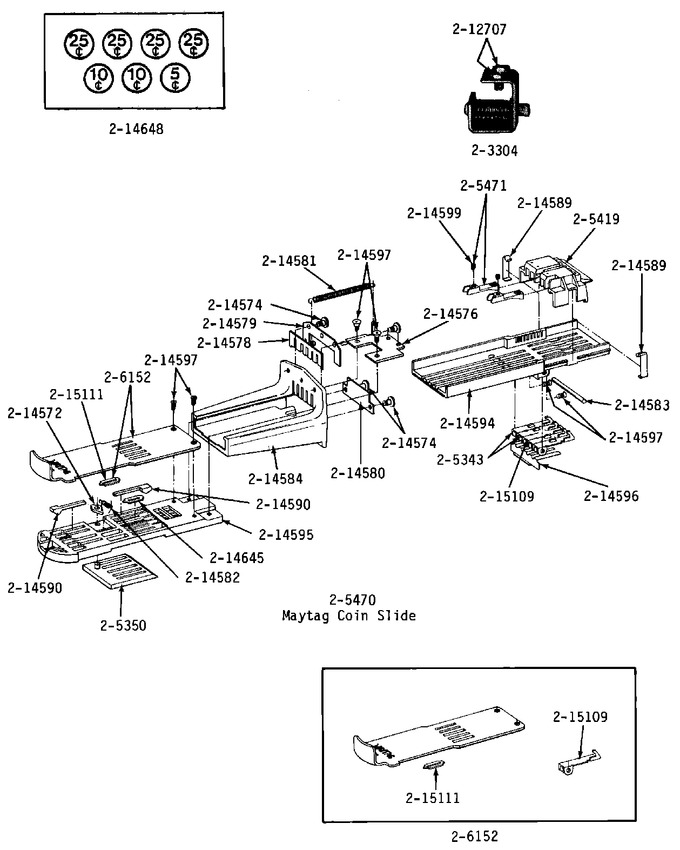

04 - Maytag Coin Slide (a18cm)


05 - Control Panels


06 - Tub, Agitator, Mtg. Stem, Hoses & Clamps


07 - Transmission


08 - Base, Pump, Motor & Components


09 - Clutch, Brake & Belts


10 - Water Valve


11 - `poly` Pump


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Actuator Kit-washer Slides---n	00	Appelez-nous	-
002	205343		Lower Gage Arm Assembly	00	Appelez-nous	-
003	205222		Stop Block Assembly   (Replaces: 205350)	00		Immediately	$ 94.17
004	NLA		Measuring Block Assembly	00	Appelez-nous	-
005	NLA		Maytag Coin Slide	00	Appelez-nous	-
006	NLA		Movable Coin Gage	00	Appelez-nous	-
007	NLA		Slide Plate W/nickel Insert	00	Appelez-nous	-
008	W11684507		Screw   (Replaces: 212707)	00			$ 12.23
009	214572		Ratchet Arm	00			$ 44.31
010	NLA		Stud For Coin Slide	00	Appelez-nous	-
011	NLA		End Bracket For Slide	00	Appelez-nous	-
012	214578		Gate For Coin Opening	00	Appelez-nous	-
013	NLA		Retainer For Gate	00	Appelez-nous	-
014	NLA		Retainer For Gage Spring	00	Appelez-nous	-
015	214581		Return Spring	00	Appelez-nous	-
016	214582		Spring For Ratchet Arm	00	Appelez-nous	-
017	NLA		Pin For Lower Gage Arm	00	Appelez-nous	-
018	214584		Housing For Coin Slide	00	Appelez-nous	-
019	214589		Spring Clip	00			$ 12.50
020	NLA		Plug For Coin Opening	00	Appelez-nous	-
021	214594		Base Insert For Housing	00	Appelez-nous	-
022	NLA		Slide Body	00	Appelez-nous	-
023	214596		Spring For Lower Gage Arm	00	Appelez-nous	-
024	214597		Screw	00	Appelez-nous	-
025	NLA		Set Screw For Gage	00	Appelez-nous	-
026	NLA		Dime Insert	00	Appelez-nous	-
027	214648		Coinage Decal	00	Appelez-nous	-
028	NLA		Lower Gage Arm	00	Appelez-nous	-
029	NLA		Nickel Insert	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
