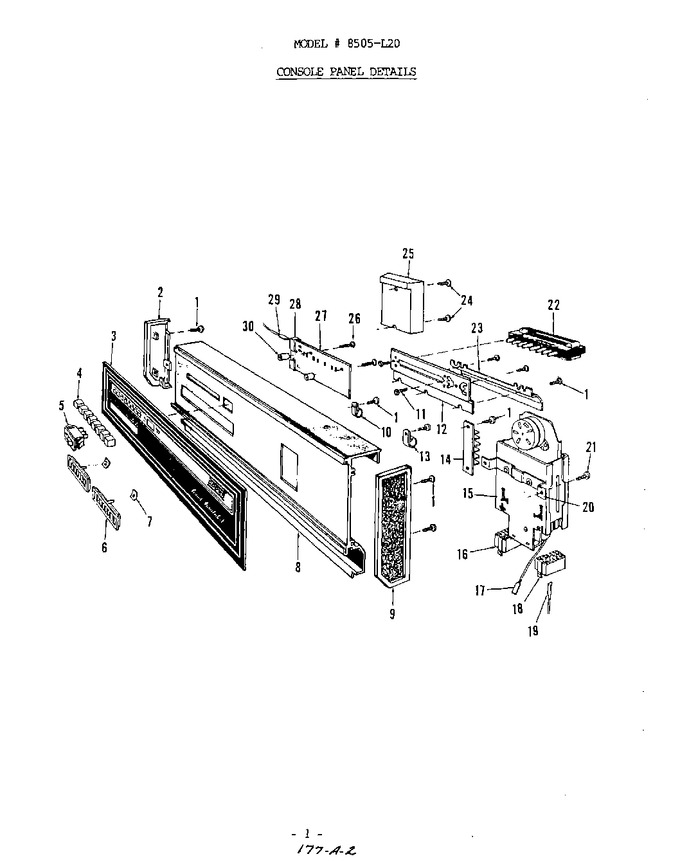

02 - Console Panel


03 - Door


04 - Tub


05 - Motor, Heater, And Spray Arm


06 - Rack


07 - Frame


08 - Detergent Cup


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	806943		Screw 8x7/16 Lg. C.r. Pan Hd. Cad. Pl.		Appelez-nous	-
2	806407		End Cap - L.h. (chrome)		Appelez-nous	-
3	808856		Console Overlay		Appelez-nous	-
4	807273		Pushbutton		Appelez-nous	-
5	807737		Rocker Switch		Appelez-nous	-
6	808477		Vent Grille		Appelez-nous	-
7	808475		Speednut		Appelez-nous	-
8	808857		Console Panel (includes Key Nos. 6 & 7)		Appelez-nous	-
9	806406		End Cap - L.h. (chrome)		Appelez-nous	-
10	W10833902		Clamp   (Replaces: 805584)				$ 9.89
11	807141		Screw 6-30 X 3/8 Lg. Pan Hd Cad. Pl.		Appelez-nous	-
12	808164		Switch Mounting Bracket		Appelez-nous	-
13	808442		Clamp		Appelez-nous	-
14	808858		Terminal Board Assembly		Appelez-nous	-
15	808833		Timer		Appelez-nous	-
16	808231		Timer Housing (blck)		Appelez-nous	-
17	808334		Terminal - Timer		Appelez-nous	-
18	808232		Timer Housing (white)		Appelez-nous	-
19	808333		Housing Terminal		Appelez-nous	-
20	808860		Timer Bracket		Appelez-nous	-
21	808861		Screw 10-32 X 7/32 Lg. C.r. Truss Hd. Cad. Pl.		Appelez-nous	-
22	808862		Switch		Appelez-nous	-
23	808398		Shield - Vent Slot		Appelez-nous	-
24	806894		Screw 8 X 5/16 Lg. C.r. Truss Hd. St. St.		Appelez-nous	-
25	807425		Splash Pan		Appelez-nous	-
26	806126		Screw 8 X 7/8 Lg. C.r. Round Hd.cad.pl.		Appelez-nous	-
27	808863		Circuit Board Assembly		Appelez-nous	-
28	808864		Circuit Board Connector		Appelez-nous	-
29	COMM PART		Circuit Board Terminal   (Replaces: 808000)		Appelez-nous	-
30	805323		Spacer		Appelez-nous	-
