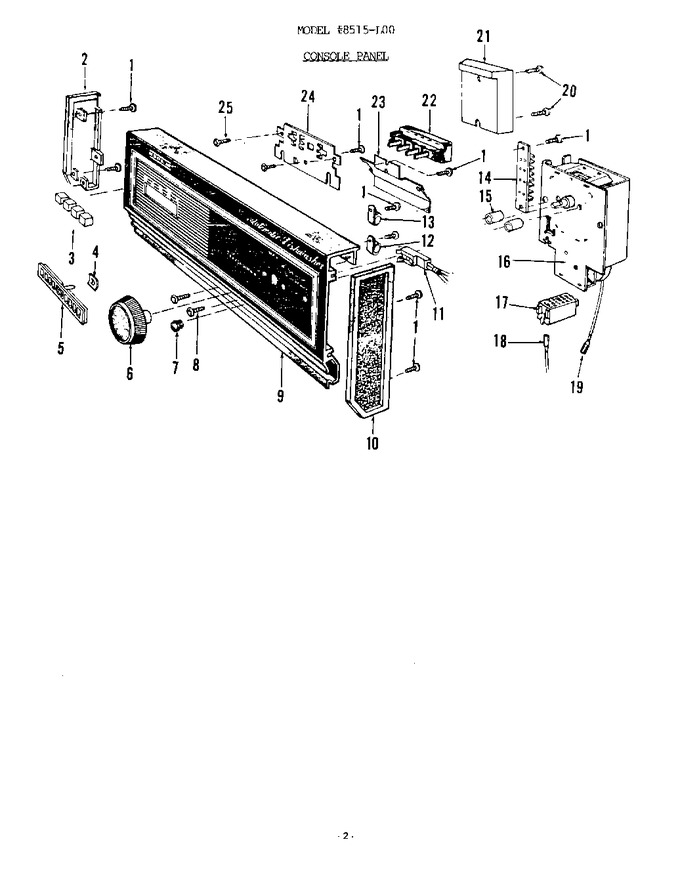

02 - Console Panel


03 - Door


04 - Tub


05 - Motor, Heater And Spray Arm


06 - Racks


07 - Frame


08 - Detergent Cup


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	806943		Screw No.8x7/16``lg. C.r. Pan Hd. Cad. Pl.		Appelez-nous	-
2	808694		End Cap L.h.		Appelez-nous	-
3	807273		Pushbutton		Appelez-nous	-
4	808475		Speednut		Appelez-nous	-
5	808477		Vent Grille		Appelez-nous	-
6	808812		Timer Knob		Appelez-nous	-
7	805664		Lens		Appelez-nous	-
8	808422		Screw No.10-32x1-17/64``lg. C.r. Truss Hd. Cad. Pl.		Appelez-nous	-
9	808816		Console Panel		Appelez-nous	-
10	808693		End Cap R.h.		Appelez-nous	-
11	808711		Light Assembly-pilot		Appelez-nous	-
12	808442		Clamp		Appelez-nous	-
13	W10833902		Clamp   (Replaces: 805584)				$ 9.89
14	808483		Terminal Board Assembly		Appelez-nous	-
15	808424		Spacer - Timer		Appelez-nous	-
16	808681		Timer		Appelez-nous	-
17	808231		Housing - Timer Terminal		Appelez-nous	-
18	808333		Housing Terminal		Appelez-nous	-
19	808334		Terminal - Timer		Appelez-nous	-
20	806894		Screw No.8bx5/16``lg. C.r. Truss Hd. Cad. Pl.		Appelez-nous	-
21	807425		Splash Pan		Appelez-nous	-
22	808407		Switch		Appelez-nous	-
23	808574		Shield - Vent Slot		Appelez-nous	-
24	806594		Switch Bracket		Appelez-nous	-
25	807141		Screw No.6-30ax3/8``lg. Pan Hd. Cad. Pl.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
